Product Name:

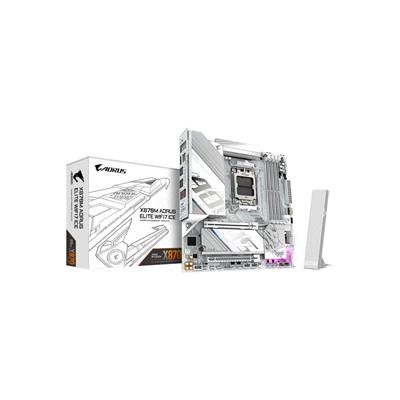

AORUS X870M AORUS ELITE WIFI7 ICE (Socket AM5/X870/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

X870M AORUS ELITE WIFI7 ICE

EAN:

4719331874704

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD X870

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/X870M-AORUS-ELITE-WIFI7-ICE/support#Support-Cpu-Support

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220 CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB4 Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x antenna connectors (2T2R)

Back Button(s):

• 1 x Clear CMOS
• 1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

HDMI Port(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Internal Button(s):

• 1 x Power
• 1 x Reset

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244nn

Package Width:

26.8cm

Package Length:

27cm

Package Height:

6.8cm

Net Weight:

1.86Kg

Gross Weight:

2.06Kg

Special Features:

• X3D Turbo Mode: Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5: 4xDIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• D5 Bionic Corsa for Infinite Memory Performance
• EZ-Latch: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
• Ultra-Fast Storage: 2 x M.2 slots, including PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
• Fast Networking: 2.5GbE LAN & Wi-Fi 7
• Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Package Contents:

• Motherboard
• User's Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA cables
• One G Connector
• Two packs of M.2 thick/thin rubber pads
