Product Name:

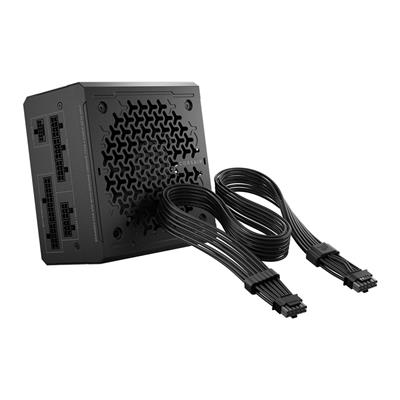

Corsair 850W ATX Fully Modular Power Supply - RM850e - 80 PLUS Platinum

Web Address:

www.corsair.com

Model Number:

CP-9020336-UK

UPC:

840440430780

Package Type:

Retail

Warranty:

7 Years

Type:

ATX 12V v2.31

Maximum Power:

850W

24-pin Main:

1

4+4-pin ATX/EPS:

2

2x6-pin PCI-E:

1

6+2-pin PCI-E:

3

SATA Connector(s):

6

Peripheral Connector(s):

2

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

100,000 hours

Package Width:

18.4cm

Package Length:

28.7cm

Package Height:

12.9cm

Net Weight:

1.53Kg

Gross Weight:

2.93Kg

Special Features:

• Includes a ThermalProtect 12V-2x6 cable with built-in Over Temperature Protection (OTP).
• ThermalProtect technology is patent pending.
• Rated Cybenetics Platinum-certified efficiency.
• Fully modular design for easy cable management.
• Ultra-flexible debossed cables with low-profile combs.
• Compact size for an easy build.
• Intel ATX 3.1 certified, PCIe 5.1 compliant.
• Zero RPM Mode for quiet computing.

Package Contents:

• Power Supply
• UK Power Cord
• Cable Set
• Mounting Screws
• Cable Ties

Keywords:

• PSU
• Power Supply
• Low-Noise
