Product Name:

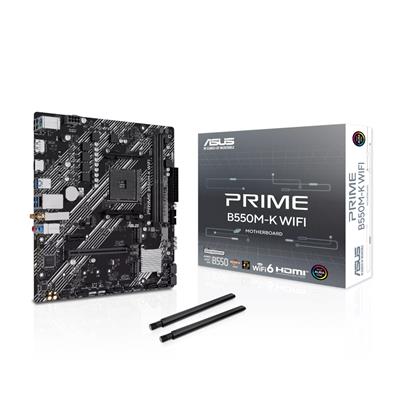

ASUS PRIME B550M-K WIFI (Socket AM4/B550/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B550M-K WIFI

EAN:

4711636611367

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 16MB (128Mb) Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-b550m-k-wifi/helpdesk_cpu?model2Name=PRIME-B550M-K-WIFI

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 5100 (O.C.)

Max. Memory Support:

64GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 3.0 x4/SATA

LAN Speed:

• 1 x Realtek 1Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 6

Wireless Technology:

• 1x1 Wi-Fi 6 (802.11ax)
• Supports 2.4/5GHz frequency band

Bluetooth:

Yes

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

4

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi module

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable RGB Gen 2 headers

Product Width:

221mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.75cm

Gross Weight:

0.92Kg

Special Features:

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. PRIME B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antenna
• 1 x I/O shield
• 1 x M.2 anchor package
• 1 x Quick start guide
