Product Name:

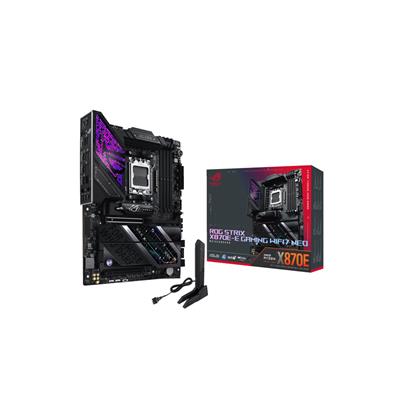

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX X870E-E GAMING WIFI7 NEO

EAN:

4711636407946

Package Type:

Retail

Warranty:

3 Years

BIOS:

64MB (512Mb) Flash ROM, UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi7-neo/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

On-Board LAN:

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth

Bluetooth:

Yes

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back USB4 Port(s) Type-C:

2

Back USB 10Gbps Port(s) Type-A:

9

Back USB 10Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable RGB Gen 2 header(s)
• 1 x Thermal Sensor header

Internal Button(s):

1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.75cm

Gross Weight:

2.06Kg

Special Features:

The ROG Strix X870E-E Gaming WiFi7 Neo is designed to unleash the power of AMD Ryzen 9000 Series processors. Enhancements such as PCIe lane optimization deliver higher speeds to five M.2 slots, all of which feature Q-Release for EZ DIY installation, just like the PCIe 5.0 x16 slot. AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x DDR5 fan holder
• 1 x Screw package for cooling kit
• 1 x ROG assistant fan (60mm)
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package(s)
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 5 x M.2 rubber package(s)
• 1 x Quick start guide
