Product Name:

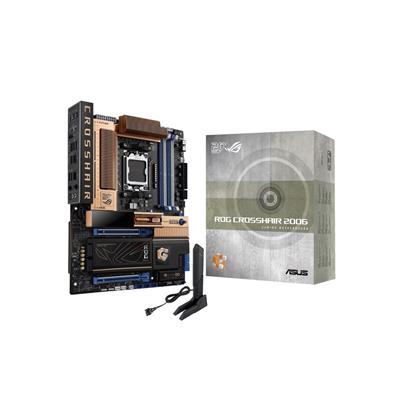

ASUS ROG CROSSHAIR 2006 (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG CROSSHAIR 2006

EAN:

4711636595704

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 64 MB (512Mb)
• Flash ROM, UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-2006/helpdesk_qvl_cpu/

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 10Gb Ethernet
• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

On-Board Video:

Processor with integrated graphics is required

Back USB4 Port(s) Type-C:

2

Back USB 10Gbps Port(s) Type-A:

6

Back USB 10Gbps Port(s) Type-C:

3

Back HDMI Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

3

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

2

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen2 headers
• 1 x Alteration PCIe mode switch
• 1 x Thermal Sensor header

Internal Button(s):

• 1 x FlexKey
• 1 x ReTry
• 1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

26cm

Package Length:

28cm

Package Height:

10cm

Net Weight:

2.74Kg

Gross Weight:

3.20Kg

Special Features:

The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper colour design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.

Package Contents:

• Motherboard
• 4 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2 22110
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 3 x M.2 Q-Slide package
• 5 x M.2 backplate rubber packages
• 1 x ROG stickers
• 1 x ROG screwdriver
• 1 x Quick start guide
