Product Name:

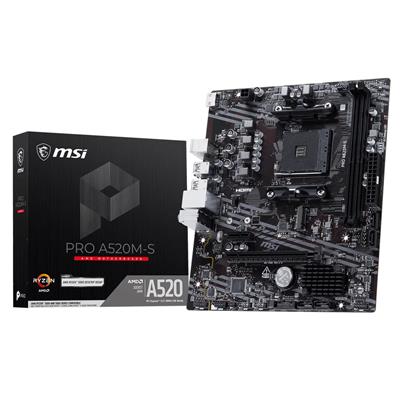

MSI PRO A520M-S (Socket AM4/A520/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

PRO A520M-S

EAN:

4711377465847

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD A520

CPU Interface:

Socket AM4

CPU Support:

https://www.msi.com/Motherboard/PRO-A520M-S/support#cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 4600+

Max. Memory Support:

64GB

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

1

RAID:

4

M.2 Socket(s):

1 x PCIe Gen 3.0 x4/SATA

LAN Speed:

Realtek RTL8111H 1Gbps LAN

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Mouse Port:

1

Back PS/2 Keyboard Port:

1

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

4

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

4 x EZ Debug LED

Form Factor:

Micro ATX

Product Width:

200mm

Product Length:

236mm

Package Width:

25.7cm

Package Length:

26cm

Package Height:

5.5cm

Net Weight:

0.4Kg

Gross Weight:

0.8Kg

Special Features:

• Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors.
• Supports DDR4 Memory, up to 4400+ MT/s (OC).
• Turbo M.2: PCIe 3.0 slot and Turbo Gen3 x4 M.2.
• EZ DIY: EZ Debug LED and EZ Mounting.
• Audio Boost: Reward your ears with studio-grade sound quality.
• MSI Centre: A brand-new software which integrates all MSI exclusive tools with a user-friendly user interface.

Package Contents:

• Motherboard
• Quick Installation Guide
• IO Shield
• M.2 Screw / Standoff Set
• SATA Cable

Keywords:

• Motherboard
• AM4
• DDR4
• MATX
