Product Name:

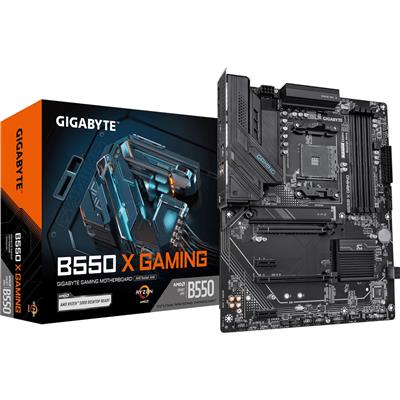

Gigabyte B550 X Gaming (Socket AM4/B550/DDR4/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B550 X GAMING

EAN:

4719331884079

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/uk/Motherboard/B550-X-GAMING-rev-1x/support#Support-Cpu-Support

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 3200

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4/SATA
• 1 x PCIe Gen 3.0 x4/SATA

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB4 Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

29.40cm

Package Length:

34.50cm

Package Height:

8.00cm

Net Weight:

1.96Kg

Gross Weight:

2.37Kg

Special Features:

• AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors.
• Hybrid Digital twin 8+2 phases VRM solution.
• Dual Channel DDR4: 4xDIMMs with EXPO Memory Module Support.
• PCIe EZ-Latch: PCIe slot with Quick Release and Screwless Design.
• M.2 EZ-Latch Plus/ Click: M.2 slots and heatsinks with screwless design.
• Ultra-Fast Storage: 2 x M.2 slots, including PCIe 4.0 x4.
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
• Fast Networking: 2.5GbE LAN.
• Extended Connectivity: HDMI, Displayport.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 2 x SATA cables
• M.2 screw 5 One pack of M.2 thick/thin rubber pads

Keywords:

• Motherboard
• AM4
• DDR4
