Product Name:

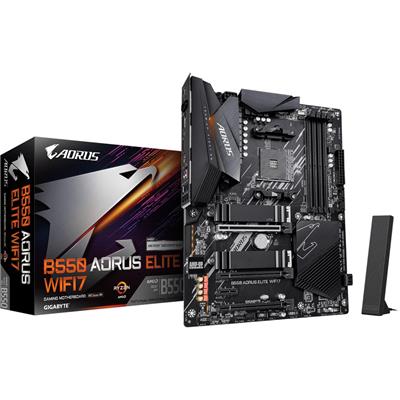

Aorus B550 AORUS ELITE WIFI7 (Socket AM4/B550/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B550 AORUS ELITE WIFI7

EAN:

4719331883362

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/uk/Motherboard/B550-AORUS-ELITE-WIFI7/support#Support-Cpu-Support

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4733 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

2

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4/SATA
• 1 x PCIe Gen 3.0 x4/SATA

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 7

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.4

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x Antenna Connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 2:

2

Front Panel Audio Connector:

1

Internal Other Port(s):

• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x addressable RGB Gen2 LED strip headers
• 2 x RGB LED strip headers

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

33.5cm

Package Height:

8cm

Net Weight:

1.68Kg

Gross Weight:

1.92Kg

Special Features:

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors.
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
• 12+2 Phases Digital Twin Power Design with 50A DrMOS.
• Advanced Thermal Design with Enlarged Surface Heatsinks.
• Ultra Durable PCIe 4.0 x16 Slot.
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards.
• Fast Networking: 2.5GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.
• Blazing Fast 2.5GbE LAN with Bandwidth Management.
• Front USB 3.2 Gen1 Type-C and DisplayPort and HDMI for Multiple Display.
• RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
• Pre-installed IO Shield for Easy and Quick Installation.

Package Contents:

• Motherboard
• Manual
• 1 x Antenna
• 2 x SATA cables
• One G Connector

Keywords:

• Motherboard
• AM4
• DDR4
• B550
