Product Name:

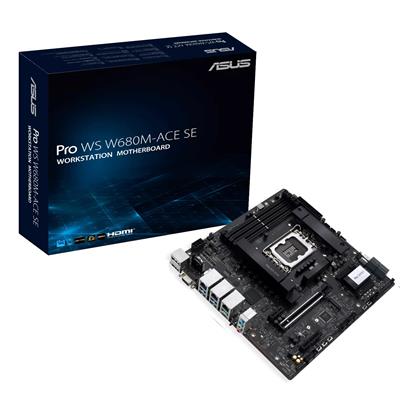

ASUS PRO WS W680M-ACE SE (Socket 1700/W680/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRO WS W680M-ACE SE

EAN:

4711387298190

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel W680

CPU:

Socket 1700

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/workstation/pro-ws-w680m-ace-se/helpdesk_qvl_cpu?model2Name=Pro-WS-W680M-ACE-SE

Memory Total Slots:

4

Memory Type:

DDR5

Slot Type:

• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x4
• 1 x PCIe 3.0 x1

S-ATA Controller:

4

RAID:

Raid 0/1/5/10

M.2 Connector:

2 x PCIe Gen 4.0 x4

On-Board LAN:

• 2 x Intel 2.5Gb Ethernet
• 1 x Realtek 1Gb Ethernet dedicated for AST2600
• ASUS LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back Panel I/O Ports:

• 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x VGA port from AST2600
• 2 x Intel 2.5Gb Ethernet ports
• 1 x Realtek 1Gb Ethernet dedicated for AST2600
• 3 x Audio jacks
• 1 x BIOS Flashback button

Internal I/O Connectors:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin W_PUMP+ header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS port
• USB
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 1 x LPT header
• 1 x T-sensor
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• BMC Related
• 1 x BMC LED and switch
• 1 x VGA switch1 x BMC LAN fixed IP switch
• 1 x IPMI switch
• 1 x Q_PSU switch
• 1 x PSU SMBus header
• 1 x VPP_I2C header
• 1 x Micro SD card socket
• 1 x BMC_T_SENSOR header
• 1 x Location button header
• 1 x Location LED and header
• 1 x Message LED and header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Net Weight:

0.96Kg

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.75cm

Gross Weight:

1.37Kg

Special Features:

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors and 12th Gen Intel Core Processors.
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery.
• Next-gen connectivity: PCIe 5.0 Safeslot, 2 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, TPM header.
• Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Centre Express.
• Comprehensive cooling: VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4.
• Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Q-connector
• 1 x M.2 Rubber Packages
• 2 x Screw package for M.2 SSD
• 1 x I/O Shield
• 1 x User guide
• 1 x ACC Express Activation Key Card

Keywords:

• Motherboard
• M-ATX
• 1700
