Product Name:

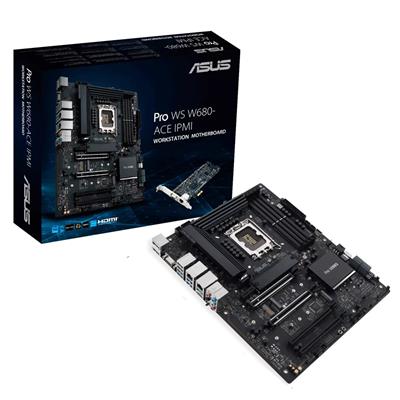

ASUS PRO WS W680-ACE IPMI (Socket 1700/W680/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

PRO WS W680-ACE IPMI

EAN:

4711387005934

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel W680

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/workstation/pro-ws-w680-ace-ipmi/helpdesk_qvl_cpu?model2Name=Pro-WS-W680-ACE-IPMI

Memory Total Slots:

4

Memory Type:

DDR5

Slot Type:

• 2 x PCIe 5.0 x16 slots
• 2 x PCIe 3.0 x16 slots (supports x4 mode)
• 1 x PCIe 3.0 x1 slot

S-ATA Controller:

8

SAS Controller:

1 x SlimSAS

M.2 Connector:

3 x PCIe Gen 4.0 x4

On-Board LAN:

• 2 x Intel 2.5Gb Ethernet
• ASUS LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back Panel I/O Ports:

• 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x VGA port
• 2 x Intel 2.5Gb Ethernet ports
• 5 x Audio jacks
• 1 x BIOS Flashback button

Internal I/O Connectors:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin W_PUMP+ header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 1 x 6-pin PCIe Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS port
• USB
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 1 x LPT header
• 1 x T-sensor
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x BMC Header
• 1 x Front Panel Audio header (AAFP)
• 1 x Start button
• 1 x Flexkey button
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x M.2 slot (Key E)
• 1 x LPT_P80 Switch
• 1 x Thunderbolt header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Net Weight:

1.01Kg

Package Width:

27.3cm

Package Length:

34.3cm

Package Height:

7.7cm

Gross Weight:

1.30Kg

Special Features:

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors.
• Bundle with IPMI expansion card: Equips with a dedicated Ethernet controller to BMC chip to provide the intelligence for its IPMI architecture.
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery.
• Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4 header support, TPM header, LPT header.
• Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4.
• Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Centre Express.
• Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Q-connector
• 1 x M.2 Rubber Packages
• 2 x Screw package for M.2 SSD
• 1 x Screw package for M.2 Key E
• 1 x I/O Shield
• 1 x IPMI expansion card
• 1 x BMC cable
• 1 x Power On/Off cable
• 1 x Reset cable
• 1 x USB 2.0 cable
• 1 x IPMI Expansion Card user guide
• 1 x User guide
• 1 x ACC Express Activation Key Card
