Product Name:

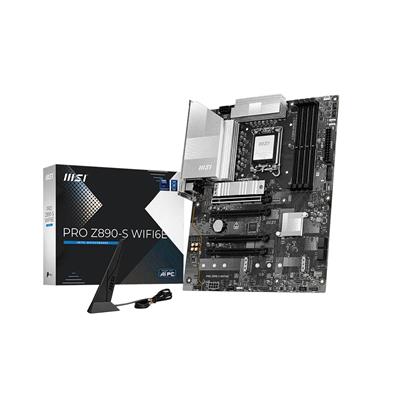

MSI PRO Z890-S WIFI6E (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

PRO Z890-S WIFI6E

EAN:

4711377427425

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z890

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/PRO-Z890-S-WIFI6E/support#cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8800 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

2

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

LAN Speed:

Realtek 8125D 2.5Gbps LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 5Gbps Port(s) Type-A:

6

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

Wi-Fi / Bluetooth

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

26.80cm

Package Length:

34.20cm

Package Height:

7.00cm

Net Weight:

1.26Kg

Gross Weight:

1.73Kg

Special Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC).
• Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB.
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high-performance system and non-stop experience.
• EZ DIY: EZ PCIe Clip II, EZ Conn-Design and EZ Antenna.
• Lightning-Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.
• 2.5G LAN with Wi-Fi 6E Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ Wi-Fi Antenna
• 2 x SATA Cables
• 1 to 2 EZ Conn-Cable
• 3 x M.2 Screw and Standoff Sets
