Product Name:

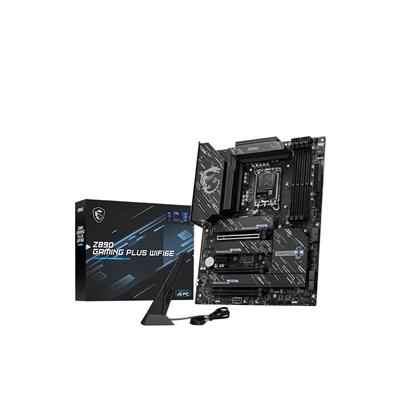

MSI Z890 GAMING PLUS WIFI6E (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

Z890 GAMING PLUS WIFI6E

EAN:

4711377431118

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z890

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI6E/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9200+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

3

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 5.0 x4

On-Board LAN:

Intel Killer E5000 5Gbps LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-C:

1

Back USB 20Gbps Port(s) Type-A:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

1

Back Button(s):

Flash

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

TPM Header(s):

1

Internal Other Port(s):

• 1 x EZ Conn-header
• 1 x Tuning Controller connector
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Standard ATX

Product Width:

243.88mm

Product Length:

304.8mm

Package Width:

26.8cm

Package Length:

34.2cm

Package Height:

7cm

Net Weight:

1.02Kg

Gross Weight:

1.06Kg

Special Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC).
• Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high-performance system and non-stop experience.
• EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2.
• High-Speed Connectivity: Intel Killer 5G LAN, Wi-Fi 6E Solution and USB 10Gbps Type-C port - a solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• 2 x SATA Cables
• 4 x M.2 Screw and Standoff Sets
• Cable Stricker
• EZ Wi-Fi Antenna
• 1 to 2 EZ Conn-Cable
