Product Name:

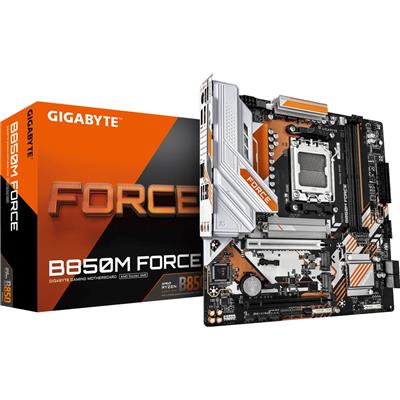

Gigabyte B850M FORCE (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B850M FORCE

EAN:

4719331874322

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B850M-FORCE-rev-11/support#Support-Cpu-Support

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9600 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio:

Realtek Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back USB 3.2 Port(s) Type-C Gen 1:

1

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Internal Button(s):

1 x Q-Flash Plus

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27cm

Package Length:

27cm

Package Height:

7cm

Net Weight:

0.84Kg

Gross Weight:

1.18Kg

Special Features:

• X3D Turbo Mode to unleash new era gaming performance.
• AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors.
• Digital 8+2+2 phases VRM solution.
• Dual Channel DDR5: 2 x DIMMs with AMD EXPO Memory Module Support.
• EZ-Latch: PCIe x16 Slot with Quick Release Design.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage: 3 x M.2 slots, including 1x PCIe 5.0 x4.
• Fast Networking: 2.5GbE LAN.
• Extended Connectivity: DP, HDMI.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA cables
• 1 x G Connector
• One pack of M.2 thick/thin rubber pads
