Product Name:

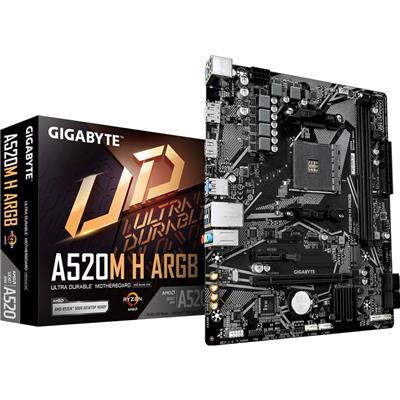

Gigabyte A520M H ARGB (Socket AM4/A520/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

A520M H ARGB

EAN:

4719331879822

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD A520

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/uk/Motherboard/A520M-H-ARGB-rev-10/support#Support-Cpu-Support

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 5100 (O.C.)

Max. Memory Support:

64GB

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

1 x PCIe Gen 3.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Form Factor:

Micro ATX

Product Width:

198mm

Product Length:

233mm

Package Width:

24cm

Package Length:

26cm

Package Height:

5cm

Net Weight:

0.70Kg

Gross Weight:

0.79Kg

Special Features:

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors.
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.
• Integrated ARGB header and Q-Flash Plus button.
• PCIe Gen3 x4 M.2 with PCIe NVMe and SATA mode support.
• Fast Network: GbE LAN.
• 8-Channel HD Audio with High Quality Audio Capacitors.
• Rear HDMI and DisplayPort for Multi-display Support.
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use.

Package Contents:

• A520M H ARGB Motherboard
• Manual
• IO Shield
• 2 x SATA cables
