Product Name:

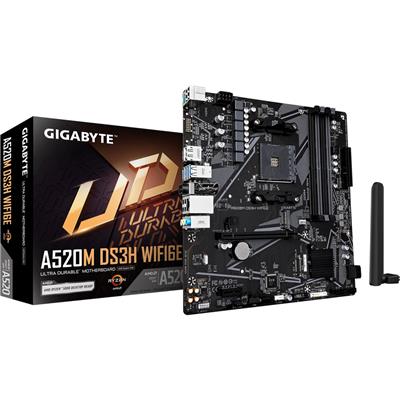

Gigabyte A520M DS3H WIFI6E (Socket AM4/A450/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

A520M DS3H WIFI6E

EAN:

4719331880743

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD A520

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Motherboard/A520M-DS3H-WIFI6E/support#Support-Cpu-Support

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4733 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

1 x PCIe Gen 3.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless NIC:

MediaTek Wi-Fi 6E MT7902

Wireless Technology:

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• Support for 11ax 160MHz wireless standard

Bluetooth:

v5.3

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Other Port(s):

2 x Antenna connectors (1T1R)

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27cm

Package Length:

27cm

Package Height:

7cm

Net Weight:

0.94Kg

Gross Weight:

1.02Kg

Special Features:

• Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors.
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
• Ultra Durable PCIe 3.0 x16 Slot.
• NVMe PCIe 3.0 x4 M.2 Connectors.
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.
• Fast Networks: GbE LAN and Wi-Fi 6E 802.11ax.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• Rear DisplayPort and HDMI for Multi-display Support.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Anti-Sulphur Resistors Design.

Package Contents:

• A520M DS3H WIFI6E Motherboard
• Manual
• IO Shield
• 2 x SATA Cables
• 1 x Antenna
