Product Name:

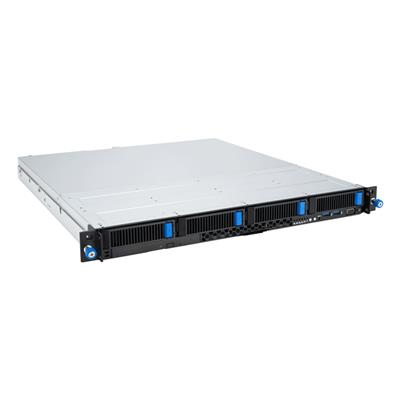

ASUS RS300-E12-PS4/350W Rackmount 1U Server (Socket 1700/DDR5)

Web Address:

www.asus.com

Model Number:

RS300-E12-PS4/350W

EAN:

4711387500354

Package Type:

Retail

Warranty:

3 Years

Core Logic:

Intel C262

CPU Interface:

Socket 1700

CPU Support:

https://servers.asus.com/products/Servers/Rack-Servers/RS300-E12-PS4/#Resources

Memory Total Slots:

4 (2-channel)

Memory Capacity:

Maximum up to 128GB UDIMM

Memory Type:

DDR5 4400/4000/3600 UDIMM

Memory Size:

32GB, 16GB, 8GB UDIMM

Total Expansion Slots:

3

Slot Type:

• 1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
• 1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
• 1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot

Drive Bays Internal 3.5":

4 x 3.5” Hot-Swap HDD Bays

Optical Drive:

1 x Slim-type Optical Drive Bay

S-ATA Controller:

8

On-Board LAN:

2 x Intel I210AT + 1 x Mgmt LAN

Back Panel I/O Ports:

• 1 x VGA port
• 2 x USB 3.2 Gen1 ports

Switch/LED:

• Rear Switch/LED:
• 1 x Q-Code/Port 80 LED
• 1 x Power switch
• Front Switch/LED:
• 1 x Power switch/LED
• 1 x Location switch/LED
• 1 x Reset switch
• 1 x HDD Access LED
• 1 x Message LED
• LAN 1-2 LED

Management Solution:

ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet

Environment:

• Operating temperature: 10°C - 35°C
• Non operating temperature: -40°C - 70°C
• Non operating humidity: 20% - 90% ( Non condensing)

Form Factor:

1U

Product Width:

497mm

Product Length:

439.5mm

Product Height:

44mm

Net Weight:

13.40Kg

Package Width:

48cm

Package Length:

52cm

Package Height:

6cm

Gross Weight:

15.00Kg

Special Features:

• Powered by eight-core Intel Xeon E-2400-series processor and Intel Xeon 6300 series processor with support for up to 95 W TDP.
• Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage.
• Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth.
• Simplified system maintenance with a 350 W 80 PLUS Gold power supply.
• Dual Intel I210-AT gigabit Ethernet with teaming support.
• Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller.
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency.
• Chassis-intrusion for enhanced physical security.

Package Contents:

1U Rackmount Server

Keywords:

• 1U
• Rackmount
• Server
