Product Name:

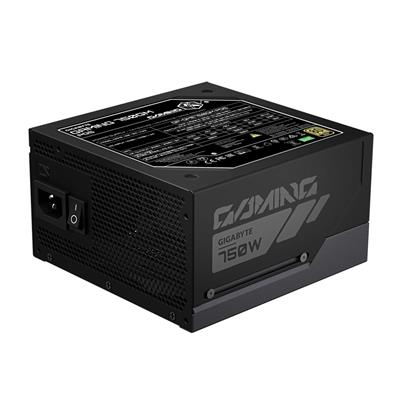

Gigabyte 750W ATX 12V v3.1 Fully Modular Power Supply - GAMING 750GM PG5 - 80 PLUS Gold

Web Address:

www.gigabyte.com

Model Number:

GP-GME750GM PG5

EAN:

4719331557188

Package Type:

Retail

Warranty:

3 Years

Type:

ATX 12V v3.1

Maximum Power:

750W

20+4-pin Main:

1

4+4-pin ATX/EPS:

1

6+2-pin PCI-E:

4

16-pin PCI-E:

1

SATA Connector(s):

8

Peripheral Connector(s):

4

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Surge and Inrush Protection:

Yes

No-load Operation:

Yes

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Type:

Fully Modular

Cooling System:

1 x 135mm Fan (FDB)

Product Width:

150mm

Product Length:

150mm

Product Height:

86mm

Package Width:

18.4cm

Package Length:

30.2cm

Package Height:

12.9cm

Gross Weight:

3.10Kg

Special Features:

• 80 PLUS Gold certified.
• Cybenetics ETA Platinum and LAMBDA A+ certified.
• T-Guard Active GPU Protection.
• 135mm Smart Fluid Dynamic Bearing (FDB) Fan.
• HybridCool Smart Fan Control.
• 100% Japanese capacitors.
• Powerful single +12V rail.

Package Contents:

• Power Supply Units
• Cable Set
• UK Power Lead

Keywords:

• PSU
• Power Supply Units
• Fully modular
• OVP
• OPP
• SCP
• UVP
• OCP
• OTP
• NLO
• SIP
