Product Name:

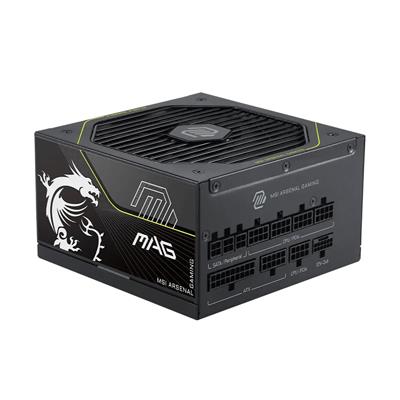

MSI 1200W ATX 3.1 Fully Modular Power Supply - MAG A1200PLS PCIE5 - (Active PFC/80 PLUS Platinum)

Web Address:

uk.msi.com

Model Number:

MAG A1200PLS PCIE5

EAN:

4711377397926

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 12V v3.1

Maximum Power:

1200W

24-pin Main:

1

4+4-pin ATX/EPS:

1

8-pin EPS:

1

6+2-pin PCI-E:

4

12+4-pin PCI-E:

1

SATA Connector(s):

6

Peripheral Connector(s):

3

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Surge and Inrush Protection:

Yes

No-load Operation:

Yes

Colour:

Black

Cable Type:

Fully Modular

Cooling System:

1 x 135mm Fan (Fluid Dynamic Bearing)

Product Width:

150mm

Product Length:

150mm

Product Height:

86mm

Package Width:

22.5cm

Package Length:

30.2cm

Package Height:

12.9cm

Net Weight:

2.85Kg

Gross Weight:

3.45Kg

Special Features:

• Premium protection, GPU Safeguard and Fan Safeguard.
• Supports Nvidia GeForce RTXTM 50 series graphics cards.
• Native 12V-2x6 connector.
• Dual-colour 12V-2x6 cable.
• 80 PLUS Platinum certified.
• Optimized the sound level.
• Main 105° capacitor.
• Embossed Jacket Cables, the cables are more bending and routing.
• Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO.

Package Contents:

• Power Supply Units
• Cable Set
• UK Power Lead

Keywords:

• Power Supply Units
• PSU
• 1200W
• ATX 3.1
• PCI-E 5.1
