Product Name:

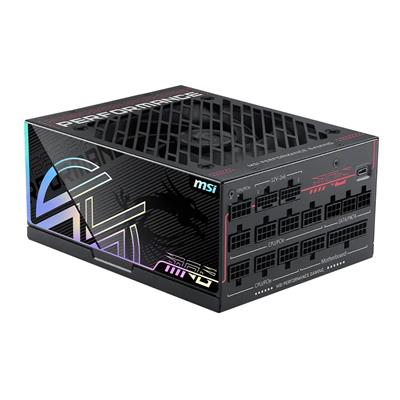

MSI 1300W ATX 3.1 Fully Modular Power Supply - MPG AI1300TS PCIE5 - (Active PFC/80 PLUS Titanium)

Web Address:

uk.msi.com

Model Number:

MPG AI1300TS PCIE5

EAN:

4711377406147

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 12V v3.1

Maximum Power:

1300W

24-pin Main:

1

4+4-pin ATX/EPS:

1

8-pin EPS:

1

6+2-pin PCI-E:

7

12+4-pin PCI-E:

2

SATA Connector(s):

8

Peripheral Connector(s):

4

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Surge and Inrush Protection:

Yes

No-load Operation:

Yes

Colour:

Black

Cable Type:

Fully Modular

Cooling System:

1 x 135mm Fan (Fluid Dynamic Bearing)

Product Width:

150mm

Product Length:

190mm

Product Height:

86mm

Package Width:

23.5cm

Package Length:

32.6cm

Package Height:

12.6cm

Net Weight:

3.65Kg

Gross Weight:

4.25Kg

Special Features:

• Premium protection, GPU Safeguard+ and Fan Safeguard.
• Server-grade materials, SiC interleaved PFC MOSFET.
• Supports Nvidia GeForce RTX 50 series graphics cards.
• 2 x native 12V-2x6 connector.
• Dual-colour 12V-2x6 cable.
• 80 PLUS Titanium certified.
• Optimized the sound level.
• 100% all Server-grade 105°C capacitor.
• Embossed Jacket Cables, the cables are more bending and routing.

Package Contents:

• Power Supply Units
• Cable Set
• UK Power Lead
