Product Name:

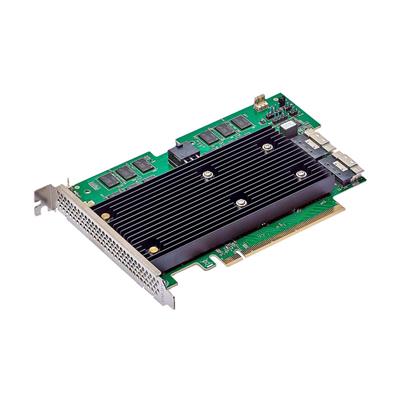

Broadcom MegaRAID 9670W-16I PCIe Gen 4.0 RAID Adapter 16-Port

Web Address:

www.broadcom.com

Model Number:

MEGARAID 9670W-16I

EAN:

0830343007720

UPC:

830343007720

Package Type:

Retail

Warranty:

3 Years

Product Length:

167.52mm

Product Height:

111.15mm

Net Weight:

0.18Kg

Package Width:

18cm

Package Length:

22cm

Package Height:

13cm

Gross Weight:

0.25Kg

Special Features:

• Lifecycle: Active
• Distributor Inventory: No
• Cache Memory: 8GB
• Cache Protection: CacheVault CVPM05
• Connectors: 2x8 SFF-8654
• Data Transfer Rates: 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
• Devices Supported: SAS/SATA: 240, NVMe: 32
• Generation: 24G
• Host Interface: x16, Gen 4.0
• Internal Ports: 16
• Management Software:
• LSI Storage Authority (LSA)
• StorCLI2 (Command-Line Interface)
• HII (UEFI Human Interface Infrastructure
• MTBF: >3,000,000 hours at 40° C
• Operating Humidity: 5% to 90% Non-condensing
• Operating Temperature: 0°C to 55°C
• OS Support:
• Microsoft Windows
• VMware vSphere/ESXi
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• Ubuntu Linux
• CentOS Linux
• Debian Linux
• Oracle Enterprise Linux
• FreeBSD
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Typical Power: 28W

Package Contents:

• MegaRAID 9670W-16i
• FH (attached)
• LP bracket

Keywords:

• RAID
• SFF
