Product Name:

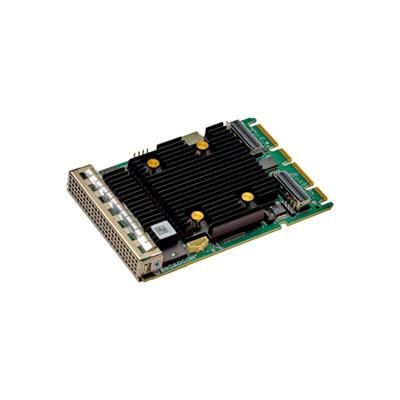

Broadcom MegaRAID 9562-16I PCIe Gen 4.0 OCP 3.0 SFF Adapter 16-Port

Web Address:

www.broadcom.com

Model Number:

MEGARAID 9562-16I

EAN:

0830343007738

UPC:

830343007738

Package Type:

Retail

Warranty:

3 Years

Product Length:

115mm

Product Height:

76mm

Net Weight:

0.09Kg

Package Width:

11.7cm

Package Length:

14cm

Package Height:

7.6cm

Gross Weight:

0.25Kg

Special Features:

• Lifecycle: Active
• Distributor Inventory: No
• Brackets: Internal Lock
• Cache Memory: 8GB
• Cache Protection: CacheVault CVPM05
• Connectors: 2x8 SFF-8654 (Vertical)
• Data Transfer Rates: 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
• Devices Supported: SAS/SATA: 1024, NVMe: 32
• Generation: 12 Gb/s
• Host Bus Type: x8 lane PCI Express 4.0
• I/O Processor / SAS Controller: SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
• Internal Ports: 16
• Management Software:
• LSI Storage Authority (LSA)
• StorCLI (Command-Line Interface)
• HII (UEFI Human Interface Infrastructure)
• MTBF: >3,000,000 hours at 40° C
• OCP Thermal Tier: Tier 5
• Operating Temperature: 0°C to 55°C
• OS:
• Microsoft Windows
• VMware vSphere/ESXi
• Red Hat Enterprise Linux
• SuSE Linux
• Ubuntu Linux
• Citrix XenServer
• CentOS Linux
• Debian Linux
• Oracle Enterprise Linux
• Fedora
• FreeBSD
• RAID Levels: 0, 1, 10, 5, 50, 6, 60
• Typical Power: 13W

Package Contents:

MegaRAID 9562-16i adapter

Keywords:

• Tri-Mode
• OCP 3.0
• SFF
