Product Name:

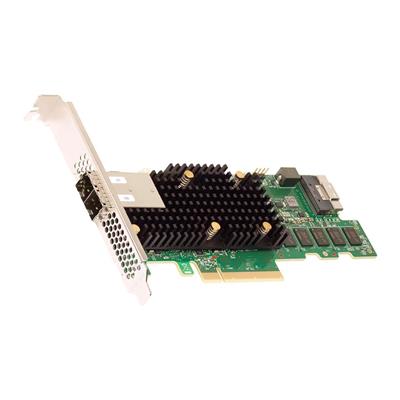

Broadcom MegaRAID 9580-8I8E PCIe Gen 4.0 RAID Controller 8-Port

Web Address:

www.broadcom.com

Model Number:

MEGARAID 9580-8I8E

Package Type:

OEM

Warranty:

3 Years

Product Length:

167.52mm

Product Height:

68.77mm

Net Weight:

0.14Kg

Package Width:

16.3cm

Package Length:

22cm

Package Height:

12cm

Gross Weight:

0.24Kg

Special Features:

• Lifecycle: Active
• Distributor Inventory: No
• Cache Memory: 8GB
• Cache Protection: CacheVault CVPM05
• Data Transfer Rates: 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
• Devices Supported: SAS/SATA: 240, NVMe: 32
• External Connectors: 2 x4 SFF-8644
• External Ports: 8
• Generation: 12 Gb/s
• Host Bus Type: x8 lane PCI Express 4.0
• I/O Processor / SAS Controller: SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
• Internal Connectors: 1 x8 SFF-8654 (SlimSAS)
• Internal Ports: 8
• Management Software:
• LSI Storage Authority (LSA)
• StorCLI (Command-Line Interface)
• HII (UEFI Human Interface Infrastructure)
• MTBF: >3,000,000 hours at 40° C
• Operating Temperature: 0°C to 55°C
• OS:
• Microsoft Windows
• VMware vSphere/ESXi
• Red Hat Enterprise Linux
• SuSE Linux
• Ubuntu Linux
• Citrix XenServer
• CentOS Linux
• Debian Linux
• Oracle Enterprise Linux
• Fedora
• FreeBSD
• RAID Levels: 0, 00, 1, 10, 5, 6, 60

Package Contents:

MegaRAID 9580-8i8e, FH (attached), LP bracket
