Product Name:

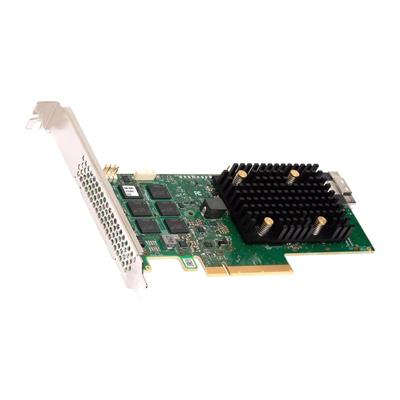

Broadcom MegaRAID 9560-8I PCIe Gen 4.0 Adapter

Web Address:

www.broadcom.com

Model Number:

MEGARAID 9560-8I

EAN:

0830343007479

UPC:

830343007479

Package Type:

Retail

Warranty:

3 Years

Product Length:

155.52mm

Product Height:

68.77mm

Net Weight:

0.15Kg

Package Width:

16.30cm

Package Length:

22cm

Package Height:

12cm

Gross Weight:

0.26Kg

Special Features:

• Lifecycle: Active
• Distributor Inventory: No
• Cache Memory: 4GB
• Cache Protection: CacheVault CVPM05
• Data Transfer Rates: 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
• Devices Supported: SAS/SATA: 240, NVMe: 32
• Generation: 12 Gb/s
• Host Bus Type: x8 lane PCI Express 4.0
• I/O Processor / SAS Controller: SAS3908 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
• Internal Connectors: 1 x8 SFF-8654 (SlimSAS)
• Internal Ports: 8
• Management Software:
• LSI Storage Authority (LSA)
• StorCLI (Command-Line Interface)
• HII (UEFI Human Interface Infrastructure)
• MTBF: >3,000,000 hours at 40° C
• Operating Temperature: 0°C to 55°C
• OS:
• Microsoft Windows
• VMware vSphere/ESXi
• Red Hat Enterprise Linux
• SuSE Linux
• Ubuntu Linux
• Citrix XenServer
• CentOS Linux
• Debian Linux
• Oracle Enterprise Linux
• Fedora
• FreeBSD
• RAID Levels: 0, 00, 1, 10, 5, 6, 60

Package Contents:

MegaRAID 9560-8i, FH (attached) and LP bracket

Keywords:

• PCIe 4.0
• SAS
• SATA
• NVMe
