Product Name:

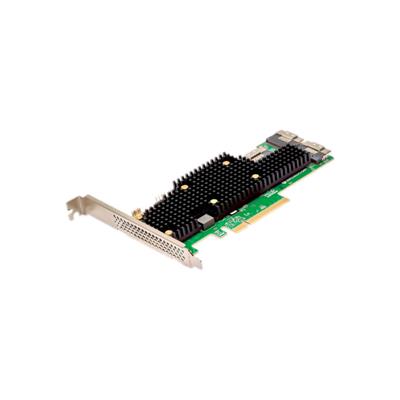

Broadcom 9600-24I Tri-Mode Storage Adapter 24-port eHBA

Web Address:

www.broadcom.com

Model Number:

9600-24I

EAN:

0830343007707

UPC:

830343007707

Package Type:

Retail

Warranty:

3 Years

Product Length:

155.52mm

Product Height:

68.77mm

Package Width:

16.3cm

Package Length:

22cm

Package Height:

12cm

Net Weight:

0.16Kg

Gross Weight:

0.35Kg

Special Features:

• Lifecycle: Active
• Distributor Inventory: No
• Brackets: Full height and low profile
• Data Transfer Rates: 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
• Devices Supported: SAS/SATA: 240; NVMe: up to 32
• Generation: 24G
• Host Bus Type: x8 lane PCI Express 4.0
• Internal Ports: 24
• Management Software:
• LSI Storage Authority (LSA)
• StorCLI (Command-Line Interface)
• HII (UEFI Human Interface Infrastructure)
• MTBF: > 5,000,000 hours at 40° C
• Operating Humidity: 5% to 90% non-condensing
• Operating Temperature: 0°C to 55°C
• OS Support:
• Microsoft Windows
• VMware vSphere
• VMware vSphere/ESXi
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• Ubuntu Linux
• CentOS Linux
• Debian Linux
• Oracle Enterprise Linux
• FreeBSD
• Typical Power: 20W

Package Contents:

• 9600-24i HBA
• Low Profile Bracket
• Bracket, FH (attached)

Keywords:

• Storage Adapter
• Tri-Mode
• eHBA
