Product Name:

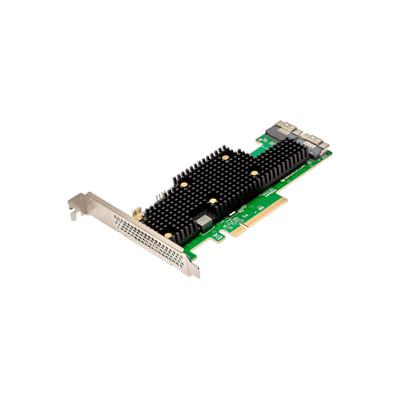

Broadcom 9600-16i Tri-Mode Storage Adapter 16-port eHBA

Web Address:

www.broadcom.com

Model Number:

9600-16I

EAN:

0830343007691

UPC:

830343007691

Package Type:

Retail

Warranty:

3 Years

Product Length:

155.52mm

Product Height:

68.77mm

Net Weight:

0.16Kg

Package Width:

16.3cm

Package Length:

22cm

Package Height:

12cm

Gross Weight:

0.27Kg

Special Features:

• Lifecycle: Active
• Distributor Inventory: No
• Brackets: Full height and low profile
• Data Transfer Rates: 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
• Devices Supported: SAS/SATA: 240; NVMe: up to 32
• Generation: 24G
• Host Bus Type: x8 lane PCI Express 4.0
• Internal Connectors: 2 x8 SFF-8654 (SlimSAS)
• Internal Ports: 16
• Management Software:
• LSI Storage Authority (LSA)
• StorCLI (Command-Line Interface)
• HII (UEFI Human Interface Infrastructure)
• MTBF: > 5,000,000 hours at 40° C
• Operating Humidity: 5% to 90% non-condensing
• Operating Temperature: 0°C to 55°C
• OS Support:
• Microsoft Windows
• VMware vSphere
• VMware vSphere/ESXi
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• Ubuntu Linux
• CentOS Linux
• Debian Linux
• Oracle Enterprise Linux
• FreeBSD
• Typical Power: 17W

Package Contents:

• 9600-16i HBA
• Low Profile Bracket
• FH (attached)

Keywords:

• Storage Adapter
• eHBA
• Tri-Mode
