Product Name:

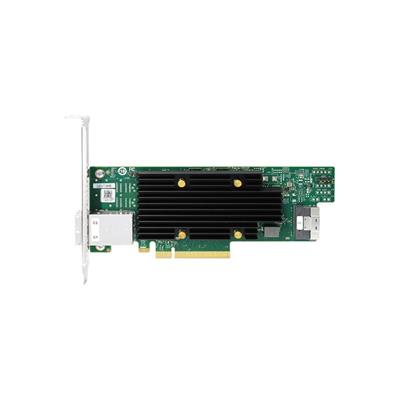

Broadcom 9600-8i8e Tri-Mode Storage Adapter 8 Internal / 8 External eHBA

Web Address:

www.broadcom.com

Model Number:

9600-8I8E

EAN:

0830343007790

UPC:

830343007790

Package Type:

Retail

Warranty:

3 Years

Product Length:

167.51mm

Product Height:

68.78mm

Net Weight:

0.17Kg

Package Width:

16.3cm

Package Length:

22cm

Package Height:

12cm

Gross Weight:

0.28Kg

Special Features:

• Lifecycle: Active
• Brackets: Full height and low profile
• Data Transfer Rates: 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
• Devices Supported: SAS/SATA: 240; NVMe: up to 32
• External Connectors: 2 x4 SFF-8674 (Ext Mini HD)
• External Ports: 8
• Generation: 24G
• Host Bus Adapters: x8, PCIe 4.0 eHBA features 8 internal and 8 external ports for high-performance and increased connectivity
• Host Bus Type: x8 lane PCI Express 4.0
• Internal Connectors: 1 x8 SFF-8654 (SlimLine)
• Internal Ports: 8
• Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
• MTBF: > 5,000,000 hours at 40° C
• Operating Humidity: 5% to 90% Non-condensing
• Operating Temperature: 0°C to 55°C
• OS Support:
• Microsoft Windows
• VMware vSphere
• VMware vSphere/ESXi
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• Ubuntu Linux
• CentOS Linux
• Debian Linux
• Oracle Enterprise Linux
• FreeBSD
• Typical Power: 17W

Package Contents:

• 9600-8i8e eHBA
• Low Profile Bracket
• Bracket
• FH (attached)

Keywords:

• Storage Adapter
• PCIe 4.0 eHBA
