Product Name:

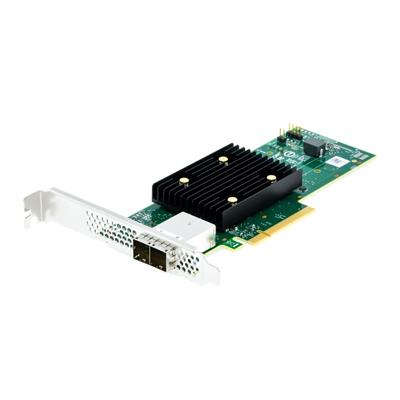

Broadcom 9500-8e Tri-Mode Storage Adapter 8-Port HBA

Web Address:

www.broadcom.com

Model Number:

9500-8E

EAN:

0830343007523

UPC:

830343007523

Package Type:

Retail

Warranty:

3 Years

Product Length:

167.65mm

Product Height:

68.77mm

Net Weight:

0.14Kg

Package Width:

16.3cm

Package Length:

22cm

Package Height:

12cm

Gross Weight:

0.24Kg

Special Features:

• Lifecycle: Active
• Brackets: Full height and low profile
• Devices Supported: SAS/SATA: 1024, NVMe: 32
• External Connectors: 2 x4 SFF-8644 (ext HD)
• External Ports: 8
• Generation: 12 Gb/s
• Host Bus Type: x8 lane PCI Express 4.0
• I/O Controller: SAS3808
• Management Software:
• LSI Storage Authority (LSA)
• StorCLI (Command-Line Interface)
• HII (UEFI Human Interface Infrastructure)
• MTBF: > 5,000,000 hours at 40° C
• Operating Humidity: 20% to 80% Non-condensing
• Operating Temperature: 0°C to 55°C
• OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Citrix XenServer, CentOS Linux, Ubuntu Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD

Package Contents:

• 9500-8e HBA
• Low Profile Bracket
• FH (attached)

Keywords:

• Storage
• Adapter
• Tri-Mode
