Product Name:

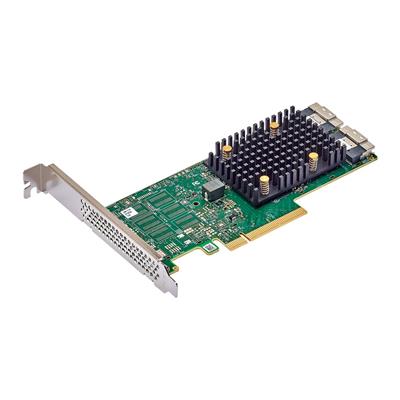

Broadcom 9500-16I Tri-Mode Storage Adapter 16-Port HBA

Web Address:

www.broadcom.com

Model Number:

9500-16I

EAN:

0830343007646

UPC:

830343007646

Package Type:

Retail

Warranty:

3 Years

Product Length:

155.52mm

Product Height:

68.77mm

Net Weight:

0.13Kg

Package Width:

16.3cm

Package Length:

22cm

Package Height:

12cm

Gross Weight:

0.26Kg

Special Features:

• Port Count: 16 internal
• Connectors: Two x8 SFF-8654
• Host Interface: x8 PCIe Gen 4.0
• Storage Interface: 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
• Management Utilities:
• LSI Storage Authority (LSA)
• StorCLI (command-line interface)
• HII (UEFI Human Interface Infrastructure)
• Operating Conditions:
• Operating: 0°C to 55°C, 5% to 90% non-condensing
• Storage: -45°C to +105°C, 5% to 95% non-condensing
• Typical Power: 8.5W
• Operating Voltage: 12V +-8%; 3.3V +-9%
• MTBF (Calculated): >5,000,000 hours at 40°C

Package Contents:

Broadcom 9500-16I Tri-Mode Storage Adapter
