Product Name:

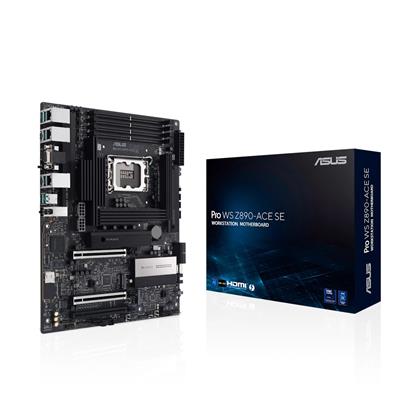

• ASUS Pro WS Z890-ACE SE
• The Pro WS Z890-ACE SE empowers workstation users

Web Address:

www.asus.com

Model Number:

PRO WS Z890-ACE SE

EAN:

4711387828892

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM UEFI AMI BIOS(text-based)

Chipset:

Intel Z890

CPU Interface:

Socket 1851

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/workstation/pro-ws-z890-ace-se/helpdesk_qvl_cpu?model2Name=Pro-WS-Z890-ACE-SE

Memory Total Slots:

4

Memory Capacity:

256GB

Memory Type:

DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)

Total Expansion Slots:

• Expansion Slots Intel Core Ultra Processors (Series 2)
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
• Intel Z890 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

S-ATA Controller:

4

RAID:

RAID 0/1/5/10

M.2 Connector:

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

On-Board LAN:

• 1 x Marvell AQtion 10Gb Ethernet
• 1 x Intel 2.5Gb Ethernet
• 1 x Realtek 1Gb Ethernet dedicated for AST2600

On-Board Audio:

Audio"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports:

• 1 x Thunderbolt 4 USB Type-C port
• 1 x USB 20Gbps port (1 x USB Type-C)
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x HDMI port
• 1 x Marvell AQtion 10Gb Ethernet port
• 1 x Intel 2.5Gb Ethernet port
• 1 x Realtek 1Gb Ethernet dedicated for AST2600
• 2 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal I/O Connectors:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 5 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS port
• USB
• 1 x USB 20Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 header supports 4 additional USB 2.0 ports
• Miscellaneous
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header
• 1 x SPI TPM header (14-1 pin)

Management Solution:

WOL by PME, PXE

Form Factor:

Standard ATX

Product Width:

305mm

Product Length:

244mm

Net Weight:

1.34Kg

Package Width:

27cm

Package Length:

34cm

Package Height:

7cm

Gross Weight:

1.43Kg

Special Features:

• Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• Intel LGA1851 socket:? Ready for Intel Core Ultra 9, 7, and 5 desktop processors.
• Robust performance:?16+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors.
• Future-proofed connectivity: Thunderbolt 4, 10Gb and 2.5Gb Ethernet, two PCIe?5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header.
• Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost.
• DIY-friendly design:?PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS?FlashBack, Q-Connector.
• Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Centre Express software for real-time monitoring and management.

Package Contents:

• Workstation Motherboard
• 2 x SATA 6Gb/s cables
• 1 x AMI license sticker
• 1 x I/O shield
• 2 x M.2 Q-Latch packages
• 2 x M.2 rubber packages
• 1 x Q-connector
• Documentation
• 1 x ACC Express activation key card
• 1 x Quick start guide
