Product Name:

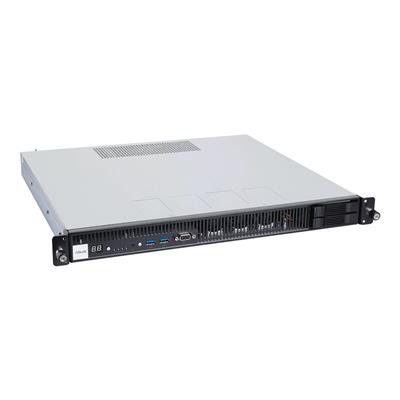

ASUS ExpertCenter Pro ER100A B6 Rackmount 1U Server (Socket AM5/DDR5)

Web Address:

www.asus.com

Model Number:

PRO ER100A B6

EAN:

4711636149068

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/displays-desktops/workstations/rack/expertcenter-pro-er100a-b6/helpdesk_cpu?model2Name=ExpertCenter-Pro-ER100A-B6

Memory Total Slots:

4 (2-channel)

Memory Capacity:

48GB, 32GB, 16GB, 8GB

Memory Type:

• DDR5 5600 MHz, ECC/non-ECC UDIMM
• Memory Speed: 2-Rank DRAM may be limited to 5200 MHz due to CPU constraints.

Slot Location 1:

PCIe x16 slots (Gen 5.0 x16/x8 link, FH HL)

Drive Bays Internal 2.5":

• 2 x 2.5'' SATA drive hot-swap bays
• 2 x internal 2.5'' SATA or U.2 NVMe drive tray

On-Board LAN:

• 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
• 2 x Intel 2.5Gb Ethernet

Front I/O:

• 2 x USB 5Gbs ports
• 1 x VGA port

Back Panel I/O Ports:

• 1 x USB 10Gbps port (1 x USB Type-C with ALT mode)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 2 x Intel 2.5Gb Ethernet port
• 1 x Realtek 1Gb Ethernet port
• 1 x VGA port
• 1 x Serial COM port

Switch/LED:

• Front:
• 1 x Power Button
• 1 x Locate Button
• 1 x Reset Button
• 1 x Storage activity LED
• 1 x System Message LED
• 2 x LAN activity LEDs
• 1 x Q-code
• Rear:
• 1 x Locate Button
• 1 x Message LED
• 1 x BMC LED

Management Solution:

ASUS Control Center Express

Environment:

• Operation temperature: 10°C -35°C, max supported CPU TDP is 65W.
• Operation temperature: 10°C - 30°C, max supported CPU TDP is 105W.
• Operation temperature: 10°C - 25°C, max supported CPU TDP is 120W.
• Non operation humidity: 20% - 90% (Non condensing).

PSU:

• 500W Gold ATX Power Supply
• (100-240Vac, 8-4A, 60-50Hz)

Form Factor:

1U

Product Width:

409mm

Product Length:

438.5mm

Product Height:

43.2mm

Net Weight:

9.63Kg

Package Width:

40cm

Package Length:

44cm

Package Height:

4cm

Gross Weight:

12.43Kg

Special Features:

• Powered by AMD EPYC 4000 series processors up to maximum 120W TDP: Delivers exceptional performance and reliability, with DDR5 5600MHz ECC/non-ECC UDIMM memory.
• Graphics Support: Supports one NVIDIA RTX A1000/A400 GPU, ideal for rendering and AI workloads.
• Storage Options: Supports two hot-swappable 2.5" SATA drive bays, and additional two internal 2.5" SATA or NVMe U.2 drive tray, enhancing storage flexibility and performance.
• Network Connectivity: Dual 2.5Gb LAN ports for fast, high-bandwidth, and low-latency connections.
• I/O Options: 10Gbps USB Type-C, USB Type-A, and an internal Type-A port (for security kits), providing versatile connectivity for various needs.
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Centre Express software for real-time monitoring and management.

Package Contents:

ExpertCenter Pro ER100A B6

Keywords:

• EPYC
• 1U
• AM5
