Product Name:

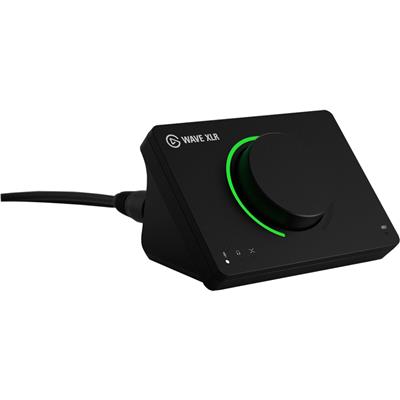

Elgato Wave XLR MK.2 Integrated Mic Interface

Web Address:

www.elgato.com

Model Number:

10MAN9901

UPC:

840440497967

Package Type:

Retail

Warranty:

2 Years

Category:

Streaming

Product Width:

93mm

Product Length:

118mm

Product Height:

73mm

Product Weight:

320g

Package Width:

19cm

Package Length:

15.5cm

Package Height:

9.5cm

Net Weight:

0.32Kg

Gross Weight:

0.73Kg

Features:

• Wave XLR MK.2 is a powerful mic interface with built-in DSP effects, Wave Link integration, and Stream Deck control. It brings your analog mic into a fully digital workflow that’s fast, flexible, and built for modern audio.
• Resolution: 24bit
• Sample Rate: 48kHz
• Frequency Response (Xlr Input): 20Hz - 20kHz
• Frequency Response (Headphones, 32 Ohm): 20Hz - 20kHz
• Dynamic Range XLR Input: 135 dB
• Equivalent Input Noise (Ein), A-Weighted: -130 dB
• Maximum Input Level: 6 dBV
• Connectors: Microphone (XLR), Headphone (3.5 mm Jack, Stereo), Host I/O (USB-C)
• Power Consumption: 900 mA max

Package Contents:

• Wave XLR MK.2
• USB-C to C cable (150cm)
• Quick Start Guide

Keywords:

• Mic
• Interface
