Product Name:

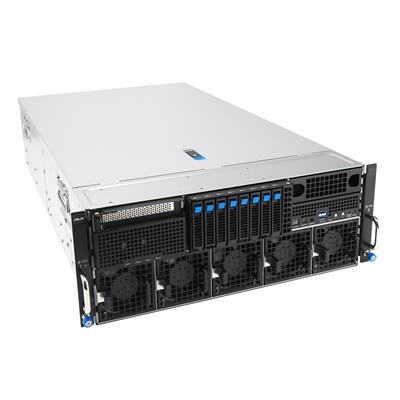

ASUS ESC8000-E12P-SKU1 Rackmount 4U Server (Socket 4710/DDR5)

Web Address:

www.asus.com

Model Number:

ESC8000-E12P-SKU1/10G/3200W(3+1)

EAN:

4711636118309

Package Type:

Retail

Warranty:

3 Years

CPU Interface:

2 x Socket 4710

CPU Support:

https://servers.asus.com/products/Servers/GPU-Servers/ESC8000-E12P/#Resources

Memory Total Slots:

32 (8 channel per CPU, 16 DIMM per CPU)

Memory Capacity:

Maximum up to 4TB

Memory Type:

DDR5 6400 (1DPC) / 5200 (2DPC) RDIMM

Memory Size:

128GB, 96GB, 64GB, 32GB RDIMM

Total Expansion Slots:

• 8 x PCIe x 16 for dual-slot GPU cards (Gen5 x 16 link, FHFL)
• 5 x PCIe x 16 for NIC/ BlueField-3 cards (Gen5 x 16 link, FHFL)
• 1 x PCIe x 16 (Gen5 x 8 link, FHHL)

Drive Bays Internal 2.5":

8 x 2.5" Front Hot-swap Storage Bays

M.2 Connector:

2 x M.2 socket (Gen 5 x4 link, up to 22110)

On-Board LAN:

• 2 x 10GbE LAN ports (RJ45, X710-AT2)
• 1 x Management Port (RJ45)

Front I/O:

• 1 x Mini DisplayPort
• 2 x USB 5Gbps ports
• 1 x Debug port

Back Panel I/O Ports:

• 1 x USB 5Gbps port
• 2 x RJ-45 LAN ports
• 1 x RJ-45 management LAN port

Switch/LED:

• 1 x Power switch/LED
• 1 x Location switch/LED
• 1 x Message LED
• 1 x Clear CMOS switch
• 1 x Reset switch
• 2 x M.2 LEDs
• 2 x LAN LEDs
• 1 x Q-Code/Port 80 LED

Management Solution:

• ASUS Control Center Enterprise (in-band)
• ASMB12-iKVM for (out-of-band/BMC AST2600)

PSU:

• 3+1 redundant 3200W 80 PLUS Titanium power supply
• 20-240 Vac, 16A (x4) 50/60Hz

Form Factor:

4U

Product Width:

439.5mm

Product Length:

800mm

Product Height:

175mm

Package Width:

59.5cm

Package Length:

111cm

Package Height:

39.5cm

Gross Weight:

44.23Kg

Special Features:

• Intel Xeon 6 Processors: Powered by Intel Xeon 6 Processors featuring 86 cores, eight-channel DDR5 memory up to 6400MHz and a max TDP of 350wattsper socket.
• Modularized Design: Fully compliant with NVIDIA MGXTM architecture, it can enable multiple configurations and rapidly deploy in large-scale enterprise AI infrastructures.
• GPU and NVIDIA NVLink bridge Support: Support up to eight dual-slot 600W GPUs, NVIDIA® NVLinkTM 2-Way or 4-Way bridges, and NVIDIA BlueField-3 DPUs to enable performance scaling.
• Optimized Server Configuration: Based on the NVIDIA OVXTM system, the server is configured with a 2-8-5 topology (CPU-GPU-DPU/NIC). Five high-bandwidth PCIe NICs and DPUs enhance network traffic and system performance.
• Toolless Design The ASUS-exclusive toolless design empowers easy service and saves over 90% maintenance time for maximum efficiency.

Package Contents:

• ASUS 4U Rackmount Chassis
• ASUS K14PG-D24 Server Board
• 1 x ASMB11 Instruction Card
• 1 x ASUS Control Centre Instruction Card
• 4 x UK Power Cables
• 16 x GPU Power Cables (6+2-pin)
• 8 x GPU Power Cables (8-pin)
• 8 x GPU Air Ducts (for Nvidia/AMD)
• 2 x CPU Heatsinks
