Product Name:

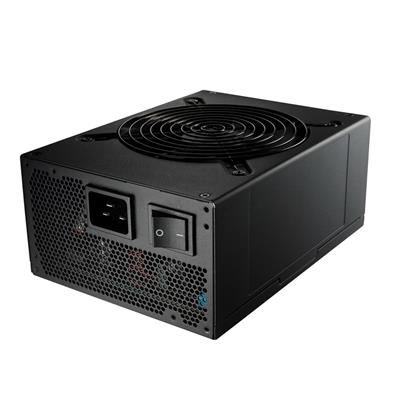

FSP 2000W ATX 2.4 Fully Modular Power Supply - CANNON PRO - 80 PLUS Gold

Web Address:

www.fsplifestyle.com

Model Number:

PPA20A0502

EAN:

4713224527777

Package Type:

Retail

Warranty:

3 Years

Type:

ATX 12V v2.4 EPS12 v2.92

Maximum Power:

2000W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

18

Floppy Connector(s):

1

SATA Connector(s):

14

Peripheral Connector(s):

5

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Colour:

Black

Cable Type:

Fully Modular

Cooling System:

1 x 135mm Fan (Dual Ball Bearing)

Product Width:

150mm

Product Length:

200mm

Product Height:

86mm

Product Weight:

2640g

Package Width:

26.4cm

Package Length:

42.5cm

Package Height:

10.2cm

Net Weight:

4.34Kg

Gross Weight:

4.94Kg

Special Features:

• Complies with ATX12 v2.4 and EPS12 v2.92.
• Efficiency > 92% at typical Load.
• Active PFC > 0.9.
• Hold up time > 17ms at full load.
• Full modular design with all black round cable.
• Supports dual sets of CPU slots.
• Provides 18pcs PCI-e for high-load system.
• +12V single-rail design.
• 5V & 3.3V rail with DC to DC Design.
• Intelligent fan with 135mm fan.
• Standby wattage
• Complete protections: OVP, OCP, UVP, SCP, OPP, OTP.

Package Contents:

• Power Supply
• UK Power Cord
• Cable Set
