Product Name:

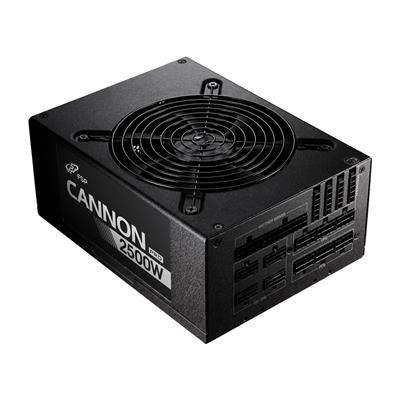

FSP 2500W ATX 3.1 PCIe 5.1 Fully Modular Power Supply - CANNON PRO - 80 PLUS Platinum

Web Address:

www.fsplifestyle.com

Model Number:

9PA25A0200

EAN:

4711498480286

Package Type:

Retail

Warranty:

3 Years

Type:

ATX 12V v3.1

Maximum Power:

2500W

20+4-pin Main:

1

4+4-pin ATX/EPS:

3

6-pin PCI-E:

4

2x6-pin PCI-E:

4

6+2-pin PCI-E:

3

8-pin PCI-E:

8

SATA Connector(s):

10

Peripheral Connector(s):

6

PFC:

Active

AC Input:

200-240V

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Surge and Inrush Protection:

Yes

No-load Operation:

Yes

Colour:

Black

Cable Type:

Fully Modular

Cooling System:

1 x 135mm Fan (Sleeve Bearing)

Product Width:

150mm

Product Length:

200mm

Product Height:

86mm

Package Width:

26.4cm

Package Length:

42.5cm

Package Height:

10.2cm

Net Weight:

5.22Kg

Gross Weight:

5.82Kg

Special Features:

• Efficiency > 94% at typical load.
• 80 PLUS® 230V EU platinum certified.
• Provide 4 native PCIe 12V-2x6 connectors and cables.
• Top-notch topology of full-bridge and LLC converter and synchronous rectifier and DC-DC converters.
• Infineon MOSFETs and SiC diodes for high efficiency and reliability.
• 420V 105°C Japanese bulk capacitor.
• Quiet and long-lasting 135mm silent fan.
• Fully modular cabling design.
• Off-Wet, off-dust and off-stain conformal coating.
• Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO.

Package Contents:

• Power Supply
• UK Power Cord
• Cable Set

Keywords:

• PSU
• Platinum
• V3.1
• OVP
• OCP
• OPP
• OTP
• SCP
• UVP
• SIP
• NLO
