Product Name:

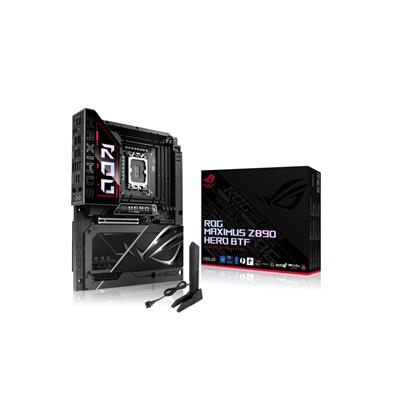

ASUS ROG MAXIMUS Z890 HERO BTF (Socket 1851/B650/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG MAXIMUS Z890 HERO BTF

EAN:

4711387847602

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel Z890

CPU Interface:

Socket 1851

CPU Support:

https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero-btf/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9200+ (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 3 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 5.0 x4

LAN Speed:

• 1 x Intel 2.5Gb Ethernet
• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

On-Board LAN:

Wi-Fi 7

Wireless NIC:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

On-Board Video:

Processor with integrated graphics is required

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

2

Back HDMI Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

USB 20Gbps Header(s):

1

Thunderbolt Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Alteration PCIe mode switch
• 1 x Thermal Sensor header

Internal Button(s):

• 1 x FlexKey
• 1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

32cm

Package Length:

37cm

Package Height:

10cm

Net Weight:

2.82Kg

Gross Weight:

4.60Kg

Special Features:

The ROG Maximus Z890 Hero BTF features hidden connectors for motherboard power, graphics card power, USB ports and fan cables, enabling an ultra-clean build for your Intel Core Ultra (Series 2) rig. Like the standard Z890 Hero, it also boasts ASUS-exclusive AI-enhanced tuning, DIY-friendly innovations, PCIe 5.0, and DDR5 slots with NitroPath DRAM Technology that enables advanced memory overclocking headroom and stability.

Package Contents:

• Motherboard
• 1 x ARGB RGB extension cable
• 4 x SATA 6Gb/s cables
• 1 x DDR5 fan holder
• 1 x Thermal pad for M.2 22110
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 3 x M.2 Q-Slide packages
• 1 x ROG stickers
• 6 x M.2 rubber packages
• 1 x ROG thank you card
• 1 x ROG Bottle Opener
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide

Keywords:

• Motherboard
• 1851
• Z890
• DDR5
