Product Name:

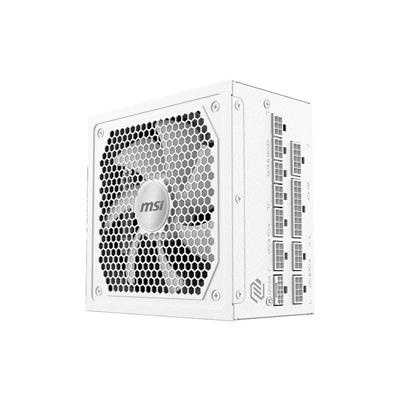

MSI 1000W ATX Fully Modular Power Supply - MAG A1000GL PCIE5 WHITE - (Active PFC/80 PLUS Gold)

Web Address:

uk.msi.com

Model Number:

MAG A1000GL PCIE5 WHITE

EAN:

4711377357111

Package Type:

Retail

Type:

ATX 12V v3.1

Continuous Power:

1000W

24-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

4

16-pin PCI-E:

1

SATA Connector(s):

12

Peripheral Connector(s):

4

Floppy Connector(s):

1

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Colour:

White

Cable Type:

Fully Modular

Cooling System:

1 x 135mm Fan (Fluid Dynamic Bearing)

Product Width:

150mm

Product Length:

150mm

Product Height:

86mm

Package Width:

23.6cm

Package Length:

29.4cm

Package Height:

13cm

Gross Weight:

3.49Kg

Special Features:

• ATX 3.1 ready, native dual-colour PCIe CEM 5.1 connector.
• Supports NVIDIA® GeForce RTX 40 / 50 series graphics cards.
• Fully modular design, flat cables.
• 80 PLUS Gold certified for high efficiency.
• Active PFC design.
• Protection with OVP / OCP / OPP / OTP / SCP / UVP.
• 135 mm fluid dynamic bearing fan.
• LLC half bridge topology with DC-to-DC module design.

Package Contents:

• Power Supply Units
• Cable Set
• UK Power Lead
