Product Name:

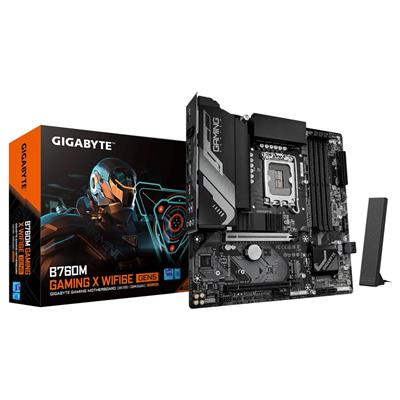

Gigabyte B760M GAMING X WIFI6E GEN5 (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B760M GAMING X WIFI6E GEN5

EAN:

4719331872953

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B760 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/uk/Motherboard/B760M-GAMING-X-WIFI6E-GEN5/support#Support-Cpu-Support

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7600 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

Realtek Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

5

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x Antenna connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 2:

2

Thunderbolt AIC Connector(s):

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 3 x Addressable LED strip headers
• 1 x RGB LED strip header

Internal Button(s):

1 x Q-Flash Plus

Package Width:

27cm

Package Length:

27cm

Package Height:

7cm

Net Weight:

1.03Kg

Gross Weight:

1.42Kg

Special Features:

• PCIe Gen5 Performance: Perfect Sync to Win.
• Supports Intel Core 14th/ 13th/12 processors.
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal.
• EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.
• PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support.
• Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution.
• Dual Channel DDR5: 4 x DIMMs with XMP Memory Module Support.
• Fast Networks: 2.5GbE LAN and Wi-Fi 6E 802.11ax.
• Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI.
• Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

• Motherboard
• Manual
• 1 x Antenna
• 2 x SATA Cables
• M.2 Screw
• One pack of M.2 thick/thin rubber pads
