Product Name:

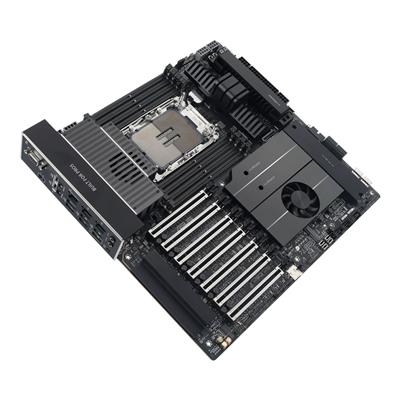

ASUS PRO WS W890E-SAGE SE (Socket 4710-2/W890/DDR5/S-ATA 6Gb/s/EEB)

Web Address:

www.asus.com

Model Number:

PRO WS W890E-SAGE SE

EAN:

4711636389372

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 512Mb Flash ROM
• UEFI AMI BIOS(text-based)

Chipset:

Intel W890

CPU Interface:

Socket 4710-2

RAM Technology:

• DDR5 (8 Channel)
• CC Registered DIMM (RDIMM)
• 3DS-RDIMM
• Multiplexed Combined Rank DIMM (MRDIMM)

RAM Slots:

8 x 288-pin

PCI Express 5.0 x16:

7

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

4 x PCIe Gen 5.0 x4

LAN Speed:

• 1 x Intel dual 10Gb Ethernet
• 1 x Realtek 1Gb Ethernet

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Back USB4 Port(s) Type-C:

2

Back USB 10Gbps Port(s) Type-A:

6

Back VGA Port(s):

1

Back Mini DisplayPort(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back Other Port(s):

• 1 x 4-pin to 24-pin Main Power connectors
• 2 x 8-pin PCIe to CPU power connectors
• 2 x 8-pin PCIe Power connector

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 2 x Addressable RGB Gen 2 headers
• 1 x CPU Over voltage jumper
• 7 x Probelt measurement points
• 3 x RSVD headers/switchs
• 1 x RTC Battery header
• 1 x VROC key header
• 1 x Thermal Sensor header

Internal Button(s):

• 1 x Reset(FlexKey)
• 1 x ReTry
• 1 x Safe Boot
• 1 x Slow Mode switch
• 1 x Start

Form Factor:

EEB

Product Width:

305mm

Product Length:

330mm

Package Width:

32cm

Package Length:

38cm

Package Height:

10cm

Net Weight:

2.38Kg

Gross Weight:

2.52Kg

Special Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• Intel® LGA4710-2 socket supports up to 86-core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
• Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, a MCIO connector, two rear USB4 40Gbps Type-C, and SlimSAS NVMe support.
• CPU and memory overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust power and thermal design: 16+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with active fans, AngleBoost Fan Kit for DDR5, and M.2 thermal pad.
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Centre Express software for real-time monitoring and management.
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Thermistor cable pack
• 1 x 4-pin to 24-pin adapter cable for ATX power connector
• 1 x AngleBoost Fan Kit
• 2 x Thermal pad for M.2 22110
• 1 x Q-connector
• 1 x M.2 Q-Latch package(s)
• 1 x Screw package for M.2 Key E
• 1 x AMI license sticker
• 1 x M.2 backplate rubber package(s)
• 1 x E2A CPU carrier (for Intel® Xeon® 690 Series Processors)
• 1 x E2B CPU carrier (for Intel® Xeon® 670/650/630 Series Processors)
• 1 x ACC Express activation key card
• 1 x Quick start guide
