Product Name:

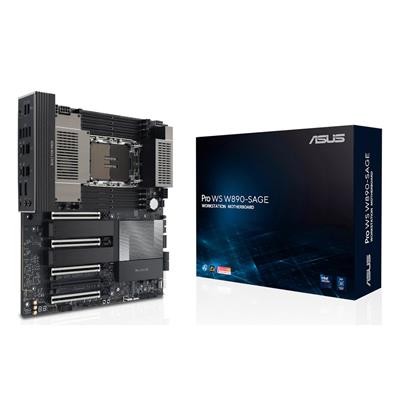

ASUS PRO WS W890-SAGE (Socket 4710-2/W890/DDR5/S-ATA 6Gb/s/CEB)

Web Address:

www.asus.com

Model Number:

PRO WS W890-SAGE

EAN:

4711636390453

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 512 Mb Flash ROM
• UEFI AMI BIOS (text-based)

Chipset:

Intel W890

CPU Interface:

Socket 4710-2

RAM Technology:

• DDR5 (Quad Channel)
• ECC Registered DIMM (RDIMM)
• 3DS-RDIMM
• Multiplexed Combined Rank DIMM (MRDIMM)

RAM Slots:

4 x 288-pin

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

5

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

4 x PCIe Gen 5.0 x4

LAN Speed:

• 1 x Realtek 10Gb Ethernet
• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Back USB 2.0 Port(s):

2

Back USB4 Port(s) Type-C:

2

Back USB 10Gbps Port(s) Type-A:

6

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back Other Port(s):

2 x DP IN ports

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

Internal I/O Connectors:

• 1 x 4-pin to 24-pin Main Power connectors
• 2 x 8-pin PCIe to CPU power connectors
• 1 x 8-pin PCIe Power connector

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

COM Port Header(s):

1

Internal Other Port(s):

• 2 x Addressable RGB Gen 2 headers
• 1 x CPU Over voltage jumper
• 2 x RSVD header(s)/switch(es)
• 1 x Slow Mode switch
• 1 x VROC header
• 1 x Thermal Sensor header

Internal Button(s):

• 1 x FlexKey
• 1 x ReTry
• 1 x Safe Boot
• 1 x Start

Form Factor:

CEB

Product Width:

280mm

Product Length:

305mm

Package Width:

36cm

Package Length:

37cm

Package Height:

10cm

Net Weight:

2.99Kg

Gross Weight:

3.49Kg

Special Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• Intel® LGA4710-2 Socket Supports up to 86-Core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
• Ultrafast Connectivity: Four PCIe® 5.0 x16 slots, 10Gb and 2.5Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C, and SlimSAS NVMe support.
• CPU and Memory Overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (2DPC).
• Robust Power and Thermal Design: 12+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with an active fan, M.2 backplate and thermal pad.
• Ready for Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion card, plus ASUS Control Centre Express software for real-time monitoring and management.
• Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Thermistor cable pack
• 1 x DisplayPort cable
• 1 x 4-pin to 24-pin adapter cable for ATX power connector
• 1 x detachable VRM/memory fan bracket kit
• 1 x Q-connector
• 2 x M.2 Q-Slide package
• 2 x M.2 backplate rubber packages
• 1 x Screw package for M.2 Key E
• 1 x E2A CPU carrier (for Intel® Xeon® 690 Series Processors)
• 1 x E2B CPU carrier (for Intel® Xeon® 670/650/630 Series Processors)
• 1 x ACC Express activation key card
• 1 x Quick start guide
