Product Name:

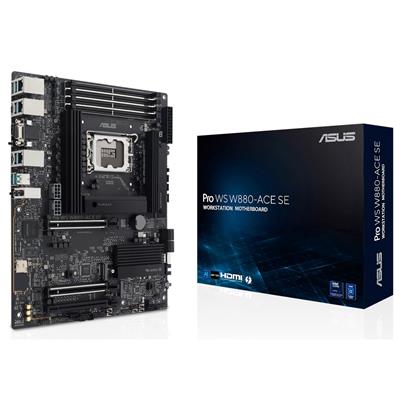

ASUS PRO WS W880-ACE SE (Socket 1851/W880/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

PRO WS W880-ACE SE

EAN:

4711387994221

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel W880

CPU Interface:

Socket 1851

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/workstation/pro-ws-w880-ace-se/helpdesk_knowledge?model2Name=Pro-WS-W880-ACE-SE

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9066+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 2 x Intel 2.5Gb Ethernet
• 1 x Realtek 1Gb Ethernet dedicated for AST2600

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A:

6

Back USB 20Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

1

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

3

Back Audio Jack(s):

2

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

1 x Thermal Sensor header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34cm

Package Height:

7cm

Net Weight:

1.34Kg

Gross Weight:

1.43Kg

Special Features:

• Ready for advanced AI PCs: Designed for the future of AI computing, with the placement and connectivity needed for demanding AI applications.
• Intel LGA1851 socket: Ready for Intel Core Ultra 9, 7, and 5 desktop processors.
• Robust performance:?8+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors.
• Future-proofed connectivity: Thunderbolt 4, Dual 2.5Gb Ethernet, two PCIe?5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header.
• Exclusive AI technologies: AI Cooling II and AI Advisor.
• DIY-friendly design:?M.2 Q-Latch, BIOS?Flashback, Q-Connector.
• Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Centre Express software for real-time monitoring and management.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x AMI license sticker
• 1 x I/O shield
• 1 x M.2 Q-Latch packages
• 2 x M.2 rubber packages
• 1 x Q-connector
• 1 x ACC Express activation key card
• 1 x Quick start guide

Keywords:

• Workstation
• Motherboard
• DDR5
• 1851
