Product Name:

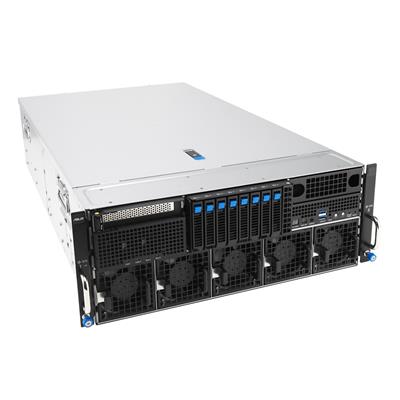

ASUS ESC8000A-E13P Rackmount 4U Server (2 x Socket SP5/DDR5) + 4 x H200 NVL

Web Address:

www.asus.com

Model Number:

ESC8000A-E13P/3200W/8N/G

EAN:

4711387133637

Package Type:

Retail

Warranty:

3 Years

CPU Interface:

2 x Socket SP5

CPU Support:

https://servers.asus.com/products/Servers/GPU-Servers/ESC8000A-E13P#Resources

Memory Total Slots:

24 (12 channel per CPU, 12 DIMM per CPU)

Memory Capacity:

Maximum up to 3TB

Memory Type:

DDR5 6400/5600 RDIMM

Memory Size:

128GB, 96GB, 64GB, 32GB, 16GB RDIMM

Total Expansion Slots:

Up to 14 slots

Slot Type:

• Rear:
• 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
• 5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL)
• Front:
• 1 x PCIe x16 (Gen5 x8 link, FH/HL)

Drive Bays Internal 2.5":

8

M.2 Connector:

2

On-Board LAN:

• 2 x 10GbE LAN ports (RJ45, X710-AT2)
• 1 x Management Port

Wireless NIC:

• 1 x USB 5Gbps port
• 2 x RJ-45 LAN ports
• 1 x RJ-45 management LAN port

Front I/O:

• 1 x Mini DisplayPort
• 2 x USB 5Gbps ports
• 1 x Debug port

Back Panel I/O Ports:

• 1 x USB 5Gbps port
• 2 x RJ-45 LAN ports
• 1 x RJ-45 management LAN port

Switch/LED:

• Front:
• 1 x Power switch/LED
• 1 x Location switch/LED
• 1 x Message LED
• 1 x Clear CMOS switch
• 1 x Reset Switch
• 2 x M.2 LEDs
• 2 x LAN LEDs
• 1 x Q-code/Port 80 LED
• Rear:
• 1 x Power switch/LED
• 1 x Location switch/LED
• 1 x Message LED

Management Solution:

• ASUS Control Center Enterprise (in-band)
• ASMB12-iKVM for (out-of-band/BMC AST2600)

Environment:

• Operating temperature: 10°C - 35°C
• Non-operating temperature: -40°C - 60°C
• Non-operating humidity: 20% - 95% (Non-condensing)

PSU:

• 3+1 redundant 3200W 80 PLUS Titanium power supply
• 220-240 Vac, 16A (x4) 50/60Hz

Form Factor:

4U

Product Width:

439.5mm

Product Length:

800mm

Product Height:

175mm

Net Weight:

47Kg

Package Width:

60cm

Package Length:

111cm

Package Height:

39cm

Gross Weight:

49Kg

Special Features:

• Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 6400 MHz DDR5 and support for a maximum TDP of up to 500 watts per socket.
• Fully compatible with NVIDIA MGX architecture, enabling fast and large-scale deployment.
• High-density 4U server for eight dual-slot high-end NVIDIA H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, supporting up to 600 watts each.
• Optimized server configuration, five PCI 5.0 slots for high-bandwidth PCIe NICs and DPU to enable performance scaling.
• ASUS-exclusive toolless design empowers easy maintenance for maximum efficiency.
• ASUS Control Centre IT management software and hardware-level Root-of-Trust solution.

Package Contents:

4U Rackmount System
