Product Name:

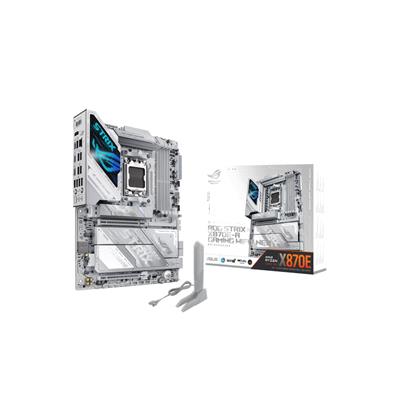

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX X870E-A GAMING NEO

EAN:

4711636491617

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 64 MB (512Mb) Flash ROM
• UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/uk/motherboards/rog-strix/rog-strix-x870e-a-gaming-wifi7-neo/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back USB4 Port(s) Type-C:

2

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

5

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 3.0 Header(s):

3

USB 5Gbps Header(s):

3

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable RGB Gen 2 headers
• 1 x Thermal Sensor header

Internal Button(s):

1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

35cm

Package Height:

7cm

Net Weight:

1.85Kg

Gross Weight:

2.82Kg

Special Features:

Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen 9000 Series processors. PCIe 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor - and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP - simplify setup and deliver optimized DDR5 performance.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x DDR5 fan holder
• 1 x Screw package for cooling kit
• 1 x ROG assistant fan (60mm)
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubbers
• 1 x Quick start guide
