Product Name:

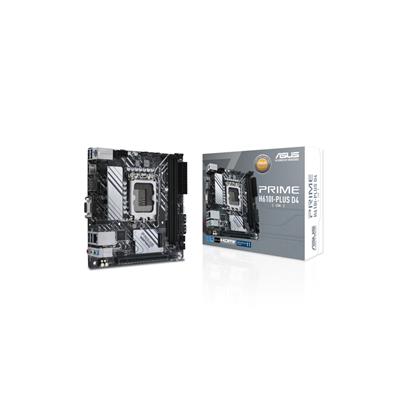

ASUS PRIME H610I-PLUS D4-CSM (Socket 1700/H610/DDR4/S-ATA 6Gb/s/Mini ITX)

Web Address:

www.asus.com

Model Number:

PRIME H610I-PLUS D4-CSM

EAN:

4711081755753

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 128 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel H610

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-h610i-plus-d4-csm/helpdesk_qvl_cpu?model2Name=PRIME-H610I-PLUS-D4-CSM

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 3200

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

1 x PCIe Gen 3.0 x4

On-Board LAN:

1 x Realtek 1Gb Ethernet

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x V-M.2 slot

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Mono-out header(with Amp IC)
• 1 x SMBUS header

Form Factor:

Mini ITX

Product Width:

170.2mm

Product Length:

170.2mm

Package Width:

18cm

Package Length:

22cm

Package Height:

6cm

Net Weight:

0.43Kg

Gross Weight:

0.55Kg

Special Features:

• Intel LGA 1700 socket: Ready for 14th, 13th and 12th Gen Intel Core processors.
• Enhanced power solution: 5+1+1 DrMOS power stages for stable power delivery.
• Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert.
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 ports.
• 5X Protection III:Multiple hardware safeguards for all-round protection.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Screw Package
• 1 x Vertical M.2 Key E bracket set
• 1 x Support DVD
• 1 x User guide
