Product Name:

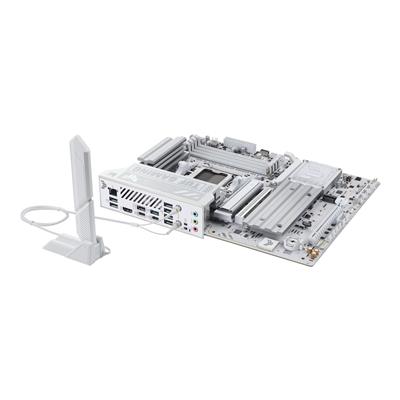

ASUS TUF GAMING X870-PRO WIFI7 W NEO (Socket AM5/X870/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING X870-PRO WIFI7 W NEO

EAN:

4711636425247

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 64MB (512Mb) Flash ROM
• UEFI AMI BIOS

Chipset:

AMD X870

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870-pro-wifi7-w-neo/helpdesk_qvl_cpu?model2Name=TUF-GAMING-X870-PRO-WIFI7-W-NEO

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 5Gb Ethernet
• TUF LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

1

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

3

Back USB 40Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

3

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen 2 headers
• 1 x Thermal Sensor header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

35cm

Package Height:

7cm

Net Weight:

4.38Kg

Gross Weight:

6.50Kg

Special Features:

ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x TUF Gaming sticker
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x Quick start guide

Keywords:

• Motherboard
• AM5
• X870
• DDR5
• WiFi
• Bluetooth
