Product Name:

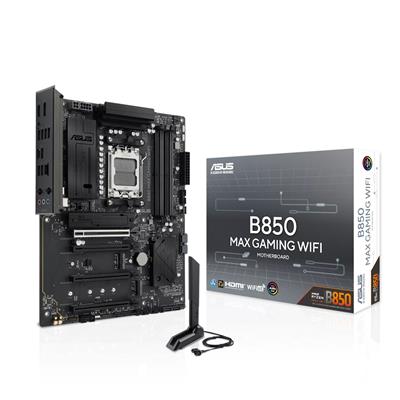

ASUS B850 MAX GAMING WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

B850 MAX GAMING WIFI

EAN:

4711636465519

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 32MB (256Mb) Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8400+ (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

2

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.4

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

3

USB 5Gbps Header(s):

2

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable RGB Gen 2 headers

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

24cm

Package Length:

30cm

Package Height:

4cm

Net Weight:

1.05Kg

Gross Weight:

1.26Kg

Special Features:

B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber packages
• 3 x Screw packages for M.2 SSD
• 1 x Quick start guide

Keywords:

• Motherboard
• AM5
• B850
• DDR5
• WiFi
• Bluetooth
