Product Name:

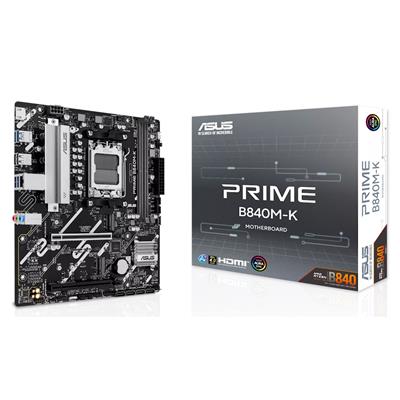

ASUS PRIME B840M-K (Socket AM5/B840/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B840M-K

EAN:

4711636435048

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 32MB (256Mb) Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B840

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-b840m-k/helpdesk_qvl_cpu?model2Name=PRIME-B840M-K

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 8000+ (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

4

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable RGB Gen 2 headers

Product Width:

221mm

Product Length:

244mm

Package Width:

22cm

Package Length:

27cm

Package Height:

4cm

Net Weight:

0.65Kg

Gross Weight:

1.02Kg

Special Features:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B840M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O shield
• 1 x Screw package for M.2 SSD
• 1 x Quick start guide

Keywords:

• Motherboard
• AM5
• B840
