Product Name:

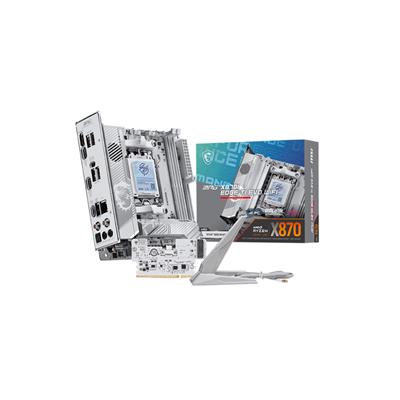

MSI MPG X870I EDGE TI EVO WIFI (Socket AM5/X870/DDR5/S-ATA 6Gb/s/Mini-ITX)

Web Address:

uk.msi.com

Model Number:

MPG X870I EDGE TI EVO WIFI

EAN:

4711377407199

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD X870

CPU Interface:

Socket Am5

CPU Support:

https://www.msi.com/Motherboard/MPG-X870I-EDGE-TI-EVO-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 10000 (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1/5/10

LAN Speed:

1 x Realtek 8126 5G LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
• Supports 802.11 a/b/g/n/ac/ax/be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC4080 Codec
• 7.1-Channel USB High-Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel
• Supports S/PDIF output

Back USB 10Gbps Port(s) Type-A:

5

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back S/PDIF Output Port(s):

1

Back Other Port(s):

Bluetooth

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash Back

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 1 x EZ Conn-header
• 4 x EZ Debug LED
• 1x Addressable V2 RGB LED connector

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

18.9cm

Package Length:

22.5cm

Package Height:

8.2cm

Net Weight:

0.83Kg

Gross Weight:

1.04Kg

Special Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 10000+ MT/s (OC).
• Ultra Performance: 8+2+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material.
• Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
• EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2.
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• Cable Sticker
• EZ Wi-Fi Antenna
• 5-in-1 Xpander Card
• 5-in-1 Xpander USB 5Gbps Cable
• USB Drive
• 2 x SATA Cables
• 1 to 3 EZ Conn-Cable (V2)
• EZ Front Panel Cable
• 3 x M.2 Screws
