Product Name:

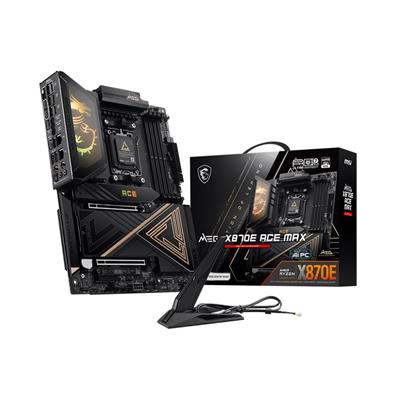

MSI MEG X870E ACE MAX (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

MEG X870E ACE MAX

EAN:

4711377401463

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/MEG-X870E-ACE-MAX/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9000 (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

2

PCI Express 5.0 x4:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Marvell AQC113CS 10Gbps LAN
• 1 x Realtek 8126 5Gbps LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA
• 7.1-Channel USB High-Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel

On-Board Video:

Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A:

9

Back USB 10Gbps Port(s) Type-C:

2

Back USB 40Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

Wi-Fi / Bluetooth

Back Button(s):

• 1 x Flash BIOS
• 1 x Clear CMOS
• 1 x Smart

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

4

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Front Type-C Quick Charge Connector
• 1 x EZ Conn-header
• 2 x Thermal Sensor connectors
• 1 x Tuning Controller connector
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector
• V-check point

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

28.6cm

Package Length:

35.2cm

Package Height:

9.1cm

Net Weight:

2.04Kg

Gross Weight:

2.55Kg

Package Contents:

• Motherboard
• EZ Wi-Fi Antenna
• Cable Sticker
• 4 x SATA Cable
• EZ Front Panel Cable
• 1 to 3 EZ Conn-Cable (V2)
• 1 to 3 ARGB Gen 2 Extension Cable
• 2 x Thermistor Cables
• USB Drive
• EZ M.2 Clip II Remover
• 3 x M.2 Screws
• Quick Installation Guide
