Product Name:

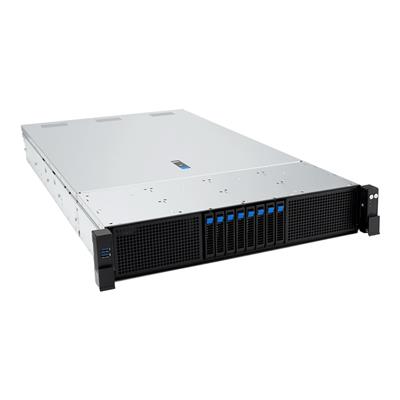

ASUS RS720A-E13-RS8U Rackmount Server (1 x Socket SP5/DDR5/2U)

Web Address:

servers.asus.com

Model Number:

RS720A-E13-RS8U/2.7KW/8NVME/OCP

EAN:

4711387915356

Package Type:

Retail

Warranty:

5 Years

CPU Interface:

Socket SP5

CPU Support:

https://servers.asus.com/products/servers/rack-servers/RS720A-E13-RS8U#Resources

Memory Total Slots:

24 (12-channel per CPU, 1 DIMM per CPU)

Memory Capacity:

Total Maximum up to 3072GB

Memory Type:

DDR5 6400/5600 RDIMM/ 3DS RDIMM

Memory Size:

• 128GB, 96GB, 64GB, 32GB RDIMM
• 128GB, 96GB, 64GB, 32GB 3DS RDIMM

Total Expansion Slots:

10

Slot Type:

• 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
• 2 x PCIE Gen5 x16 (FHHL)
• 2 x OCP3.0 Gen5 x16 (SFF)

Drive Bays Internal 2.5":

8 x 2.5" hot-swap drive bays support 8x NVMe/SATA/SAS

On-Board LAN:

1 x Management Port

On-Board Video:

Aspeed AST2600 64MB

Front I/O:

2 x USB 3.2 Gen1 ports

Back Panel I/O Ports:

• 2 x USB 3.2 Gen1 ports
• 1 x Mini-DP port
• 1 x RJ-45 Management LAN port
• 1 x Debug port

Switch/LED:

• Front Switch/LED:
• 1 x Power Switch w/LED
• 1 x Reset Switch
• 1 x Location Switch w/LED
• 1 x HDD Access LED
• 1 x Message LED
• Rear Switch/LED:
• 1 x Power Switch w/ LED
• 1 x Location Switch w/LED
• 1 x Message LED

Management Solution:

On-Board ASMB12-iKVM for KVM-over-IP

Environment:

• Operation temperature: 10? - 35?
• Non operation temperature: -40? - 60?
• Non operation humidity: 20% - 90% (Non condensing)

PSU:

1+1 Redundant 2700W Titanium PSU

Form Factor:

2U

Product Width:

484.65mm

Product Length:

822.16mm

Product Height:

87.3mm

Net Weight:

17.81Kg

Package Width:

50cm

Package Length:

100cm

Package Height:

10cm

Gross Weight:

21.34Kg

Special Features:

• High-performance processing: Powered by dual AMD EPYC 9005 processors with up to 500W TDP per socket, delivering outstanding performance with 192 cores for demanding workloads.
• Modular and scalable architecture: Built on the flexible DC-MHS architecture, providing seamless integration, optimization, and scalability for modern data centres and dynamic IT environments.
• Advanced cooling solution: Performance 2U heatsinks for processors with higher TDP, ensuring efficient thermal management and system stability under heavy workloads.
• Tool-less, easy-maintenance design: Features tool-less access, including a top-cover handle and optimized fan bar for improved cable management and easy maintenance.
• Scalable expansion capability: Supports up to 24 DDR5 RDIMM modules at 6000MHz, maximum up to 3TB. Offers versatile storage options with eight hot-swap bays and supports up to eight NVMe/SATA/SAS support PCIe 5.0 drives for evolving workload requirements.
• Enhanced security: PFR FPGA as Root-of-Trust solution with TPM 2.0 for hardware security and regular firmware updates to address vulnerabilities.

Package Contents:

Server
