Product Name:

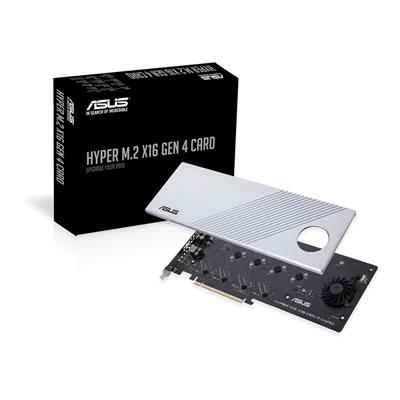

ASUS Hyper M.2 x16 Card 4 x M.2 Socket Gen 4

Web Address:

www.asus.com

Model Number:

HYPER M.2 X16 GEN 4 CARD

EAN:

4718017624923

UPC:

192876624920

Package Type:

Retail

Warranty:

1 Year

Interface:

PCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 slots, support data transfer rates up to 256 Gbps.

Connector:

Up to 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0/3.0)

Package Width:

26.3cm

Package Length:

32.8cm

Package Height:

5cm

Gross Weight:

0.83Kg

Special Features:

• AMD TRX40/X570 Series Motherboard models with PCIe 4.0 support
• Supports PCIe 3.0 bandwidth for other RAID on CPU models.
• Two-phase power solution with up to 14-watt output supports the latest NVMe drives.
• Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability.
• Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers.
• Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel platform RAID-on-CPU functions.
• Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting.

Package Contents:

Hyper M.2 x16 Gen 4 Card

Keywords:

• M.2
• PCIe
• 2242
• 2260
• 2280
• 22110
